Eaton 1451B-6511 Photoelectric Reflex Polarized Sensor 15ft SPDT Relay REPLACEMENT MPN

Product Description

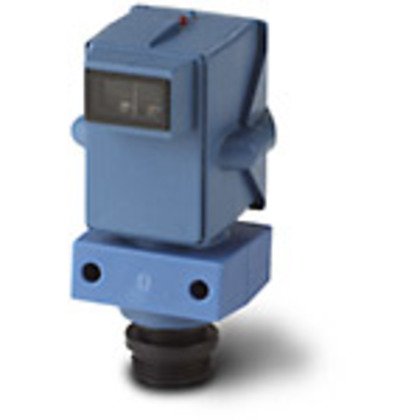

The EATON 1451B-6511 is a photoelectric reflex polarized sensor with a sensing range of 15ft (4.6m). It operates at 115VAC and features a SPDT relay output configuration. The sensor is constructed with a rectangular, swivel threaded base and a Noryl material. It is designed for side sensing with a visible red beam.

• Sensing range of 15ft (4.6m)
• Features a SPDT relay output configuration
• Enclosure Rating NEMA 1, 3, 4, 12, 13

Product Highlights

This sensor offers flexibility, durability, and high optical performance in a cost-effective, self-contained package. It is suitable for use in areas subject to wash-down, high shock, and/or vibration.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1451B-6511

Technical Specifications

• Type: Photoelectric Reflex Polarized Sensor
• Construction Style: Rectangular
• Sensing Range: 15 ft. (4.6m)
• Voltage: 115V AC
• Output Mode: Light/Dark Operate
• Output Configuration: SPDT Relay
• Connection Type: Cable
• Connection Size: 1.8m (6 ft.)
• Sensing Position: Side
• Beam Type: Visible Red
• Response Time: 12ms
• Material: Noryl
• Enclosure Rating NEMA: NEMA 1, 3, 4, 12, 13
• Temperature Rating: -40 to 70 C (-40 to 158 F)
• Load Current - max: 50 mA to 2 A
• Additional Info: Lens Material: Nylon
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 1451B-6511
• IP/NEMA Rating: NEMA 1, NEMA 12, NEMA 4
• Shape: Rectangle
• UNSPSC: 39121528
• Application: For light to detect the presence or absence of an object, electrical assemblies, panels and EOEMs
• Output Type: Selectable Light/Dark Operate
• Sensing Beam: Red Laser
• Enclosure Type: NEMA 1/3/4/12/13
• Voltage Rating: 90 to 132
• Frequency Rating: 60
• Operating Temperature: -40 to 158
• Series: 50 Series
• Light Source: LED
• Component: Photoelectric Sensor
• (Instrument-Sensor) Type: Polarized Retroreflective
• (Instrument-Sensor) Cable Length: 72 Ft
• Amperage Rating: 50
• (Instrument-Sensor) NEMA Protection: NEMA 3
