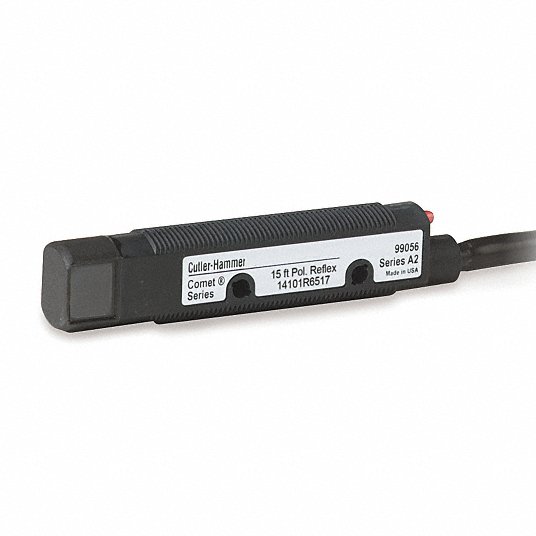

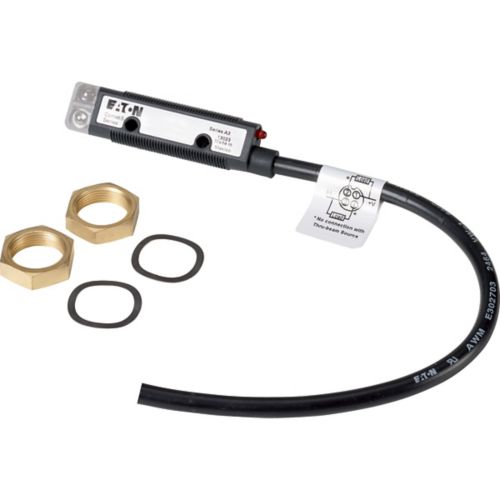

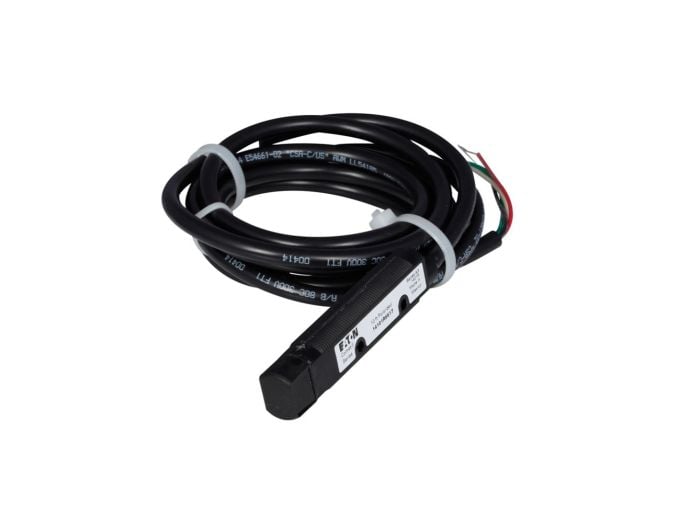

Eaton 14101R6517 Photoelectric Sensor Comet Series Polarized Reflex 15-30VDC

Product Description

The EATON 14101R6517 is a photoelectric sensor from the Comet Series, designed for polarized reflex sensing applications. It operates within a 15-30VDC range.

• Visible beam models for easy sensor alignment
• Adaptable modulation circuit prevents crosstalk
• Solid polyurethane housing provides shock and vibration resistance

Product Highlights

This sensor features selectable light/dark operation and an 18mm threaded body for flexible mounting.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 14101R6517
• Country of Origin: Mexico

Technical Specifications

• Range: 10 ft, 3 m
• Type: Photoelectric Sensor
• Volts DC Range: 15 - 30
• Alternate Mfr Part Number: 14101R6517
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 14101R6517
• MPN: 14101R6517
• Product Name: Eaton Moeller series E58 Retroreflective sensor
• Catalog Number: 135651
• EAN: 4015081324446
• Product Length/Depth: 158.75 mm
• Product Height: 50.8 mm
• Product Width: 133.35 mm
• Product Weight: 0.32 kg
• Certifications: CE CSA-C22.2 No. 14 CSA Class No.: 3211-07 UL 508 IEC/EN 60947-5-2 UL Category Control No.: NRKH, NRKH7 UL UL File No.: E117028 CSA CSA File No.: 50513
• Model Code: 14101R6517
• Features: Right-angled beam Polarized light
• Electric connection type: Cable
• Enclosure material: Plastic
• Enclosure type: Cylinder, screw-thread
• Operating mode: Switching principle: Adjustable bright/dark switching
• Explosion safety category for dust: None
• Explosion safety category for gas: None
• Functions: For combination with reflector Short-circuit protection Protection against polarity reversal Reflected-light beam
• Voltage type: DC
• Connection type: 2 m connection cable 4-wire
• Light type: Polarity free red light
• Degree of protection: NEMA 6 IP67
• Interface type: Other
• LED indicator: Status indication of Switching state: Red LED
• Switch function type: Programmable/configurable
• Load current: Max. 100 mA (Ie, PNP) Max. 250 mA (Ie, NPN, 120 > 50 C)
• Laser protection class: None
• Shock resistance: 100 g, Mechanical, Shock duration 3 ms
• Optical surface material: Plastic
• Output current (mA) - max: 100 mA
• Rated control supply voltage (Us) at DC - max: 30 V
• Rated control supply voltage (Us) at DC - min: 10 V
• Rated switching distance (Sn): 3000 mm
• Sensor length: 76 mm
• Voltage rating - max: 30 V
• Safety type (IEC 61496-1): 1
• Switching frequency: 500 Hz
• Sensing mode: Light-/dark switching
• Switching output type: PNP/NPN
• Sensor material: Insulated material
• Product category: Comet Series
• Response time: 1 ms
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -40 °C
• Diameter sensor: 18 mm
• Number of contact energized outputs with signalling function: 0
• Number of outputs (protected contact energized): 0
• Number of outputs (protected semiconductor): 0
• Number of outputs (semiconductor with signaling function): 2
• Operational current (Ib) in the switched state at 24 V DC: 30 A
• Adjustment type: Manual adjustment
• Manufacturer: Eaton
• Product Series: COMET
• Family Series: Eaton Photoelectric Sensors, COMET Series
• Description: Eaton Photoelectric sensor, Polarized Retroreflective, Right Angle, Output ON, 6.6 ft, 100 mA PNP, 250 mA NPN at 10-30 Vdc, PVC, 10-30 Vdc
• Power Type: DC
• Beam Type: Visible Red
• Max Range: 10 '
• Voltage: 10-30 VDC
• Nominal Voltage: 12 VDC, 24 VDC
• Connection Type: Cable
• Operating Mode: Dark On, Light On
• Output Type: PNP/NPN
• Max Load Current: 0.25 A
• Composition: Non-Metallic
• Protection Rating: NEMA 1
• Polarization Filter: Yes
• Approvals: CE, cUL, UL
• Net Weight: 0 lbs
• Gross Weight: 1.75 lbs
• Body Material: Polyurethane
• Cylindrical Sensor Dims. (D x L): 18 mm x 18 mm
• DC Supply Voltage Rating: 10-30V DC
• Display Qty: 1
• Display Sell UOM: EA
• Electrical Connection: Bare Wire
• Electrical Installation Type: Prewired Cable
• Emitted Sensor Light: Infrared
• Auto Reset Short Circuit: Auto Reset Short Circuit
• IP Rating: IP69K
• Includes Indicator Lights: Indicator Lights Included
• Load Current - Maximum: 250 mA
• NEMA Enclosure Rating: 1; 12; 13; 3; 4; 4X; 6
• Nominal Sensor Diameter: M18 Threaded
• Operating Temperature - Maximum: 158 °F
• Operating Temperature - Minimum: -40 °F
• Output Circuit: NPN and PNP
• Output Circuit Type: NPN and PNP
• Overall Diameter: 18 mm
• Overall Height: 18 mm
• Overall Width: 12 mm
• Product Type: Photoelectric Sensor
• Sensing Distance - Maximum: 3 m
• Sensing Distance - Minimum: 30 mm
• Sensing Method: Polarized Retroreflective
• Sensor Body Style: Cylindrical
• Sensor Cable Length: 2 m
• Sensor Diameter: 18 mm
• Sensor Face Orientation: Right Angle
• Sensor Switching Mode: Selectable Light On/Dark On
• Series: Comet
• Standards: cUL; UL Listed
• Supply Voltage: 10-30V DC
• Supply Voltage Type: DC-Only
• UNSPSC: 39121528
