Product Description

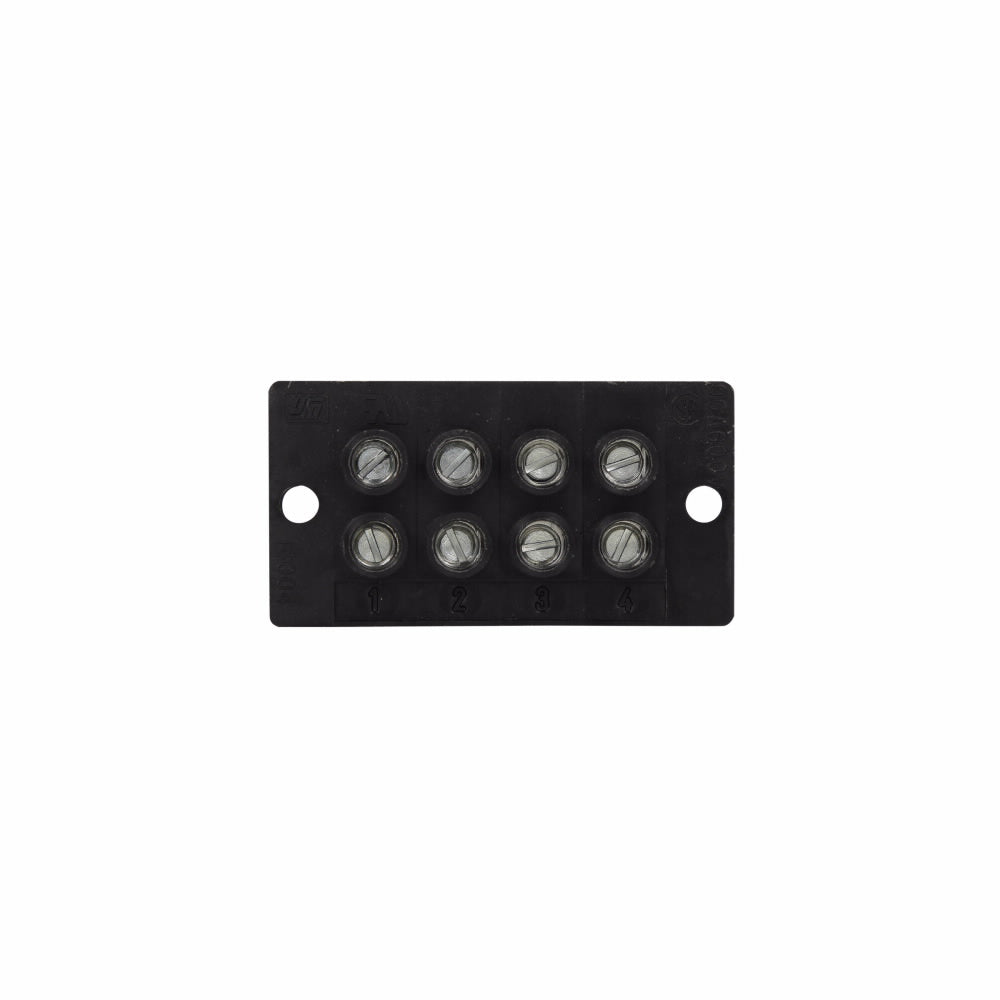

The Eaton 14004-4 is a dead front enclosed threaded/splicer power terminal block. It is rated for six hundred VAC/VDC and supports a maximum of ninety amperes. This terminal block is designed for use with wire sizes ranging from fourteen to four AWG, and it accommodates eight AWG wire as well. Its compact size measures two point eighty-one inches in length, one point five inches in width, and one point twelve inches in height.
- Rated for 600 VAC/VDC
- Supports up to 90 A
- Suitable for four pole applications
Product Highlights
Ideal for electrical assemblies and panel applications, this terminal block provides reliable connections and safety features.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171220710
Technical Specifications
-
Amperage Rating: 90 A
-
Application: Electrical assemblies, panels and EOEMs applications
-
Dimensions: 2.81 in L x 1.5 in W x 1.12 in H
-
Manufacturer Part Number: 14004-4
-
Number of Poles: 4
-
Series: 14004
-
Standards/Approvals: CE Marked, CSA File No. LR15364, Guide XCFR2, RoHS Compliant, UL 508A File No. E62622
-
Type: Dead Front Enclosed Threaded/Splicer
-
Voltage Rating: 600 VAC/VDC
