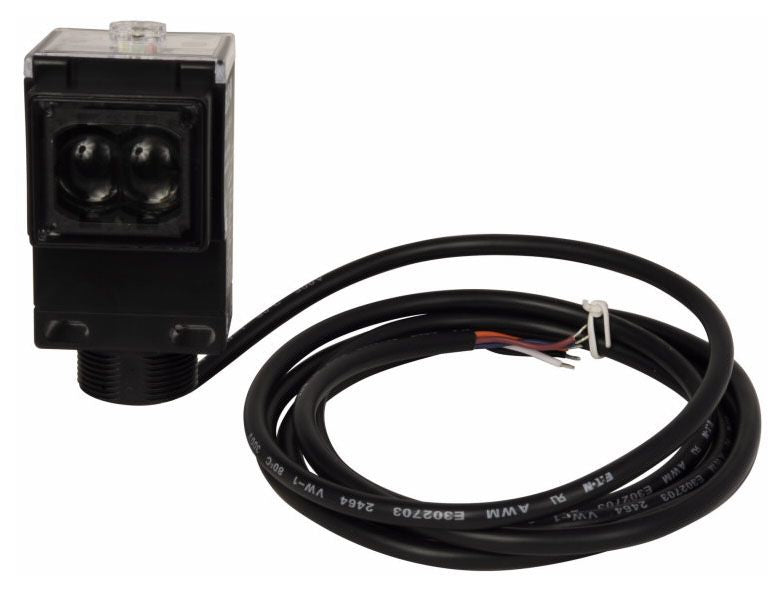

Eaton 1351E-6514 Diffuse Reflective Sensor

Product Description

The EATON 1351E-6514 is a diffuse reflective photoelectric sensor used for non-contact object detection in industrial control and automation applications. Diffuse reflective sensors emit a light beam and detect the light reflected directly off the target, eliminating the need for a separate reflector or receiver. This type of sensor is typically installed by licensed electricians or industrial controls technicians working on machine controls, conveyor systems, or process automation panels.

Diffuse reflective photoelectric sensors are well suited for residential and light commercial automation as well as industrial production environments. They are commonly installed where detecting the presence, absence, or position of objects is required without physical contact. Typical scenarios include end-of-line detection, parts counting, and position verification on automated equipment.

Key Features

• Diffuse reflective sensing mode eliminates need for separate reflector or receiver
• Non-contact detection for reliable, wear-free operation
• Compact form factor suitable for panel or machine mounting
• Designed for integration into industrial control circuits

Compatibility

Designed as an OEM-style replacement or direct installation photoelectric sensor for industrial control and automation systems requiring diffuse reflective detection.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician. De-energize all circuits and follow applicable NEC lockout/tagout procedures before mounting or wiring the sensor. Ensure the sensing face is aimed at the target surface and free from obstructions. Do not expose the sensor to voltages or environmental conditions beyond its rated specifications.

Technical Specifications

• Sensing Type: Diffuse Reflective
• Weight: 0.7 pounds
• UPC: 78211611167

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1351E-6514
