Eaton 1351B-6511 Photoelectric Sensor 24 in

Product Description

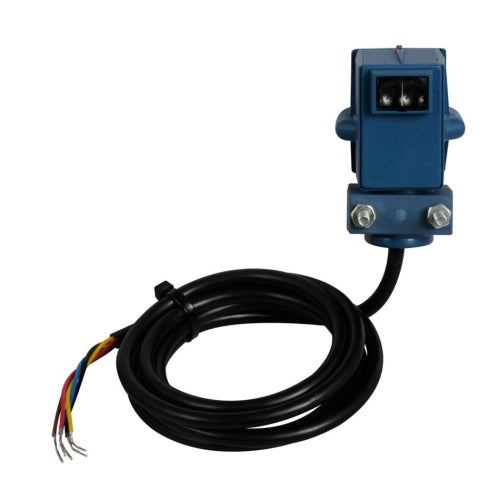

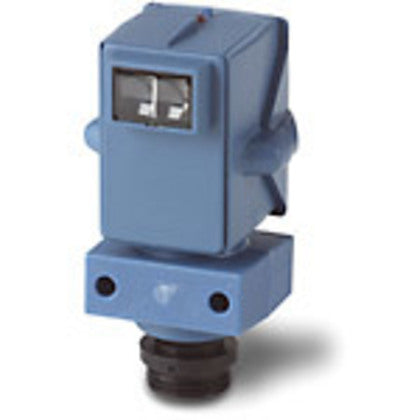

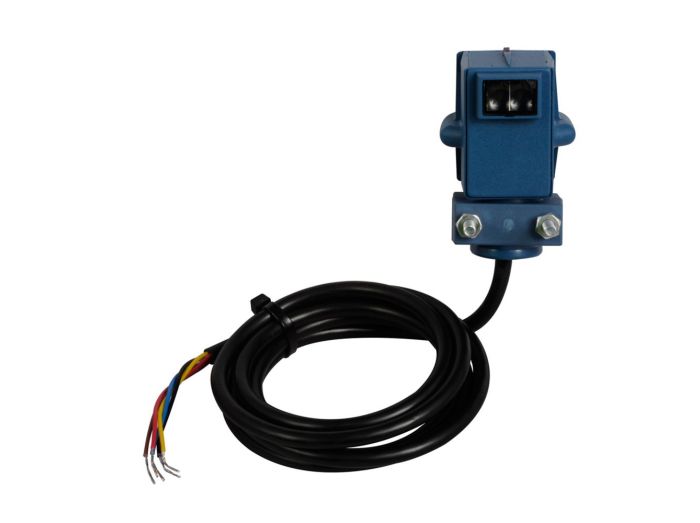

The EATON 1351B-6511 is a 50 Series photoelectric sensor with a right-angle design. This sensor features a Noryl body and nylon lens enclosure. It operates on 90-132 VAC input and offers diffuse reflective sensing with an infrared beam. The sensor has a 24-inch sensing range and a 6.6 ft cable connection.

• .83~70 ft. Sensing Range
• 90~132 VAC or 10~30 VDC
• 2, 4, or 5 Wire

Product Highlights

The EATON 1351B-6511 photoelectric sensor offers flexibility and durability with high optical performance. It is suitable for use in areas subject to wash-down, high shock, and/or vibration.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1351B-6511

Technical Specifications

• Manufacturer Part Number: 1351B-6511
• Manufacturer: Eaton
• Product Series: 50
• Family Series: Eaton Photoelectric Sensors, 50 Series
• Description: Eaton 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 24 In., Body: Noryl, Lens: Nylon enclosure, Depends on Output Device max AC and DC, 6.6 Ft. 2m Cable, 90-132 Vac input, Diffuse Reflective, 6 Ft. 1.8m
• Power Type: AC
• Beam Type: Infrared
• Max Range: 24 "
• Voltage: 115 VAC
• Nominal Voltage: 120 VAC
• Connection Type: 6.6 ft Cable
• Operating Mode: Dark On, Light On
• Output Type: Selectable Light/Dark Operate
• Composition: Non-Metallic
• Protection Rating: NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
• Approvals: CSA, UL
• Component: Photoelectric Sensor
• (Instrument-Sensor) Type: Diffuse Reflective
• Length: 6.600 ft
• IP/NEMA Rating: NEMA 1, NEMA 12, NEMA 4
• Range: 24 in
• Volts AC Range: 90 - 132
• Shape: Rectangle
• UNSPSC: 39121528
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Response Time: 12
• Enclosure Type: NEMA 1/3/4/12/13
• Voltage Rating: 90 to 132
• Frequency Rating: 60
• Size: 1.64 in L x 1.83 in W x 3.19 in H
• Series: 50 Series
• Light Source: LED
• Sensing Range: 24
• Amperage Rating: 50
