Eaton 13108AQD07 DC 6 Perfect Prox W

Product Description

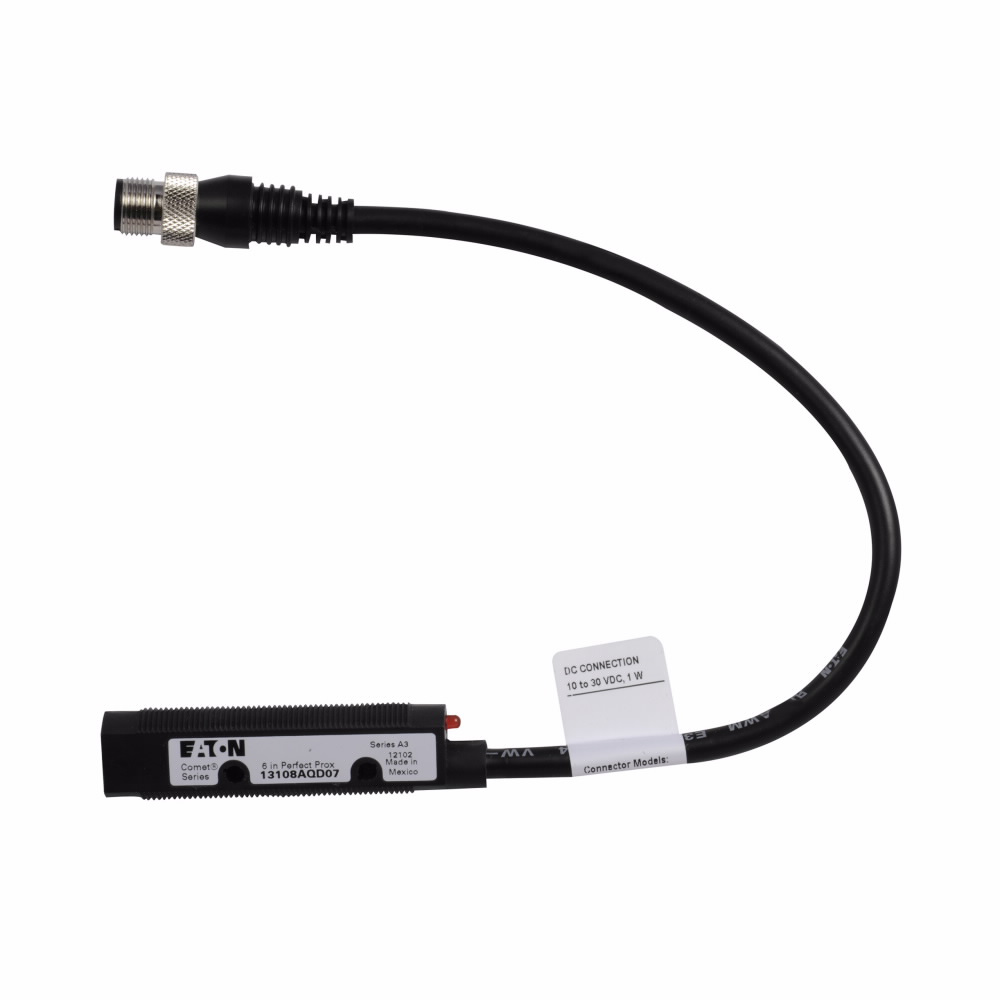

The Eaton Moeller 13108AQD07 is a diffuse reflective sensor designed for automation applications. It operates with an input voltage of ten to thirty VDC and features both NPN and PNP output options. This sensor is constructed from sturdy materials, ensures reliability in various environments, and is ideal for use in vehicles.

• Sensor range of six inches.
• Operating temperature from minus forty to one hundred fifty-eight degrees Fahrenheit.
• Standard connections using M12 fittings.

Product Highlights

The Eaton 13108AQD07 sensor is suitable for applications in lighting controls, safety systems, and building automation.

Product Information

Standard Information

• Catalog Number: 13108AQD07
• Manufacturer: Eaton

Technical Specifications

• Input Voltage: 10 to 30 VDC
• Connection Type: M12
• Weight: 0.097 kg
• Width: 0.47 in
• Height: 50.8 mm
• Length: 158.75 mm
• Operating Temperature: -40 to 158 degrees F
• Response Time: 1/3.5 ms
• Sensing Beam: Infrared
• Sensing Method: Background Suppression
