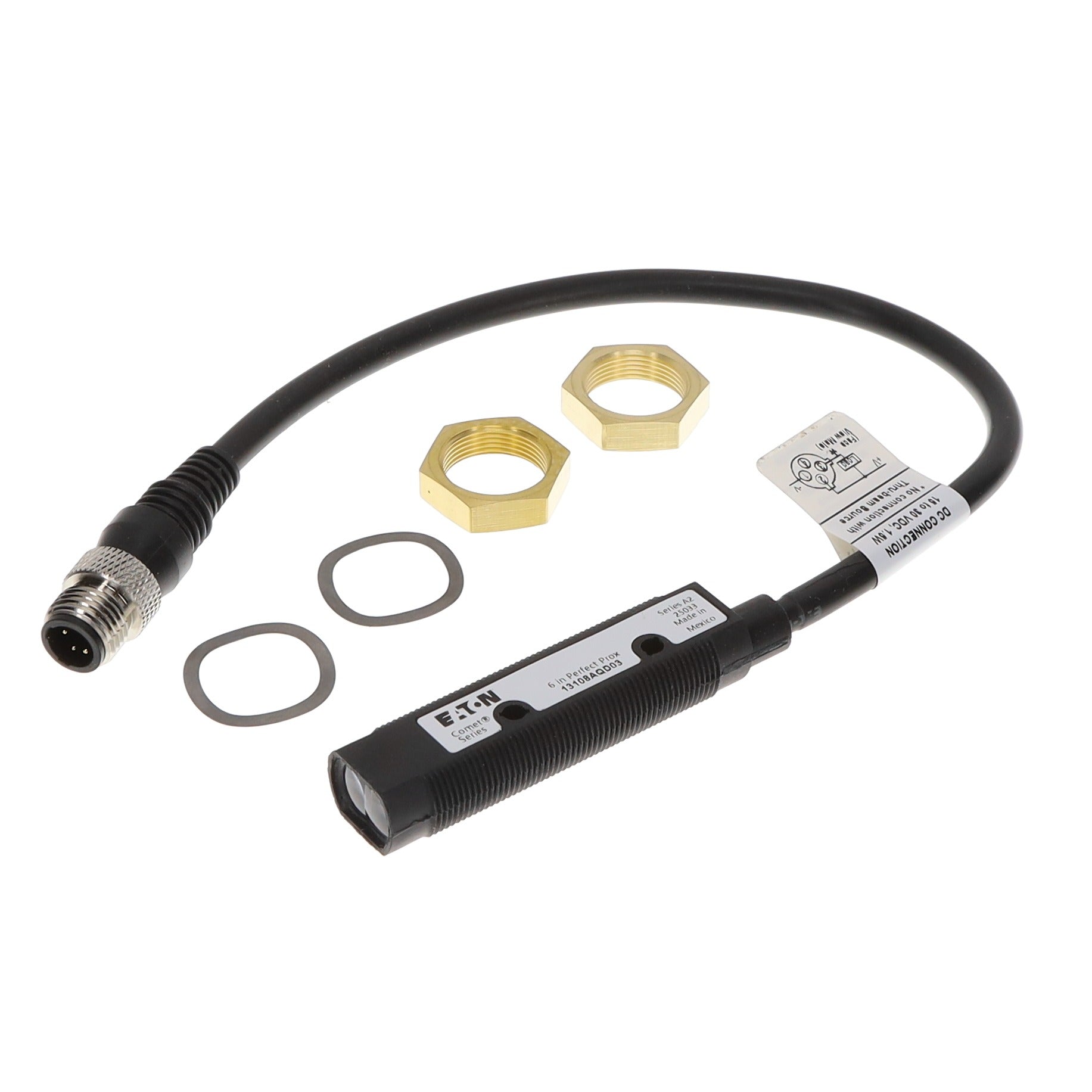

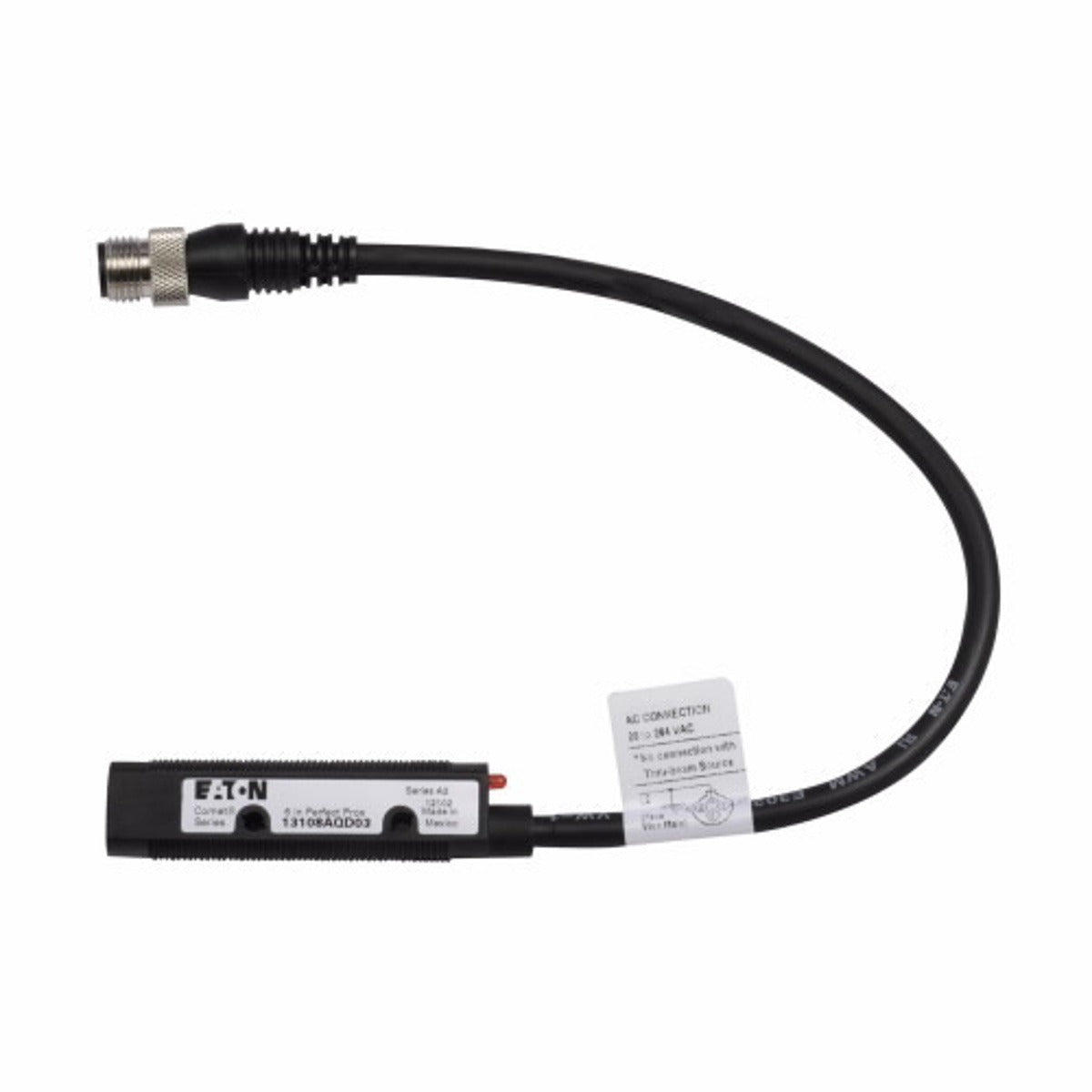

Eaton 13108AQD03 background rejection photoelectric sensor 1.5 W (M18)

Product Description

Eaton 13108AQD03 is a Comet series background suppression photoelectric sensor with a 150 mm sensing distance that accepts 20–264 VAC or 15–30 VDC input. The sensor provides AC L1 switched or DC NPN open-collector output, features an M18 threaded body with an M12 dual-key micro connector, and uses a polyurethane encapsulated housing rated for harsh environments. Typical uses include object detection, conveyor sensing, and automation control.

• Diffuse reflective background suppression sensing; sensing distance 150 mm (approx. 6 in)
• Wide supply range 20–264 VAC or 15–30 VDC with AC L1 switched / DC NPN open-collector output and 300 mA load rating
• M18 threaded tubular body, M12 connector, polyurethane enclosure; rated to NEMA 1/3/4/4X/6/12/13 and IP69K; operating temperature -40 to 158 °F

Product Highlights

Comet series M18 background suppression photoelectric sensor; 150 mm range; AC/DC input; NPN/L1 switched output; M12 connector; rugged polyurethane enclosure; IP69K; -40 to 158 °F operating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 13108AQD03
• Country of Origin: Mexico
