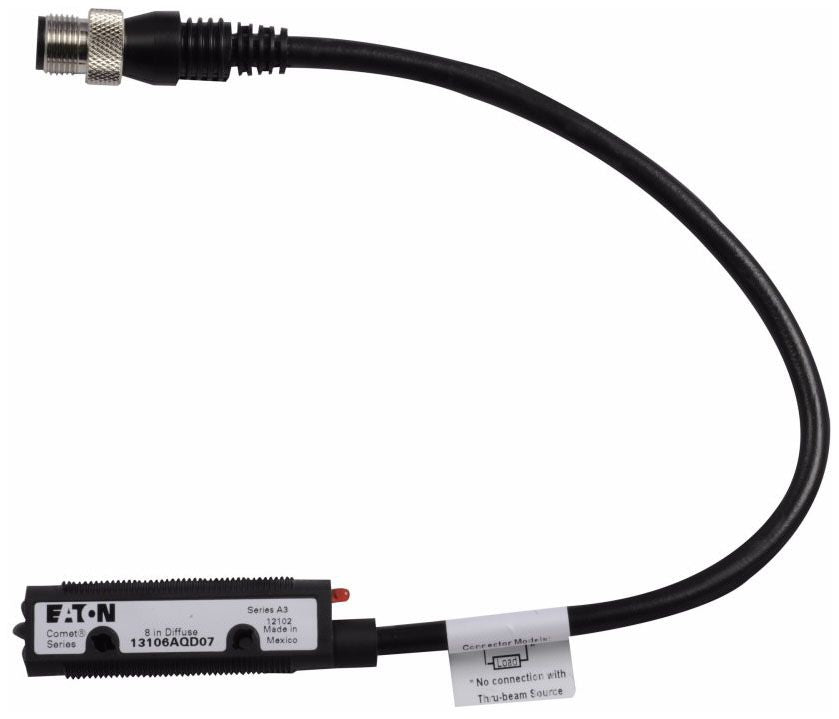

Eaton 13106AQD07 Diffuse Reflective Sensor

Product Description

The EATON 13106AQD07 is a diffuse reflective photoelectric sensor used in industrial and commercial control applications. Diffuse reflective sensors detect objects by emitting a light beam and sensing the reflection from the target itself, eliminating the need for a separate reflector or receiver. This type of sensor is commonly installed by electricians and automation technicians in machine control panels, conveyor systems, and process equipment where non-contact object detection is required.

The 13106AQD07 is suited for use in light industrial and commercial environments where reliable proximity detection is needed. It fits into control systems requiring compact, self-contained sensing units and is typically wired into PLC inputs or relay control circuits by qualified electrical technicians.

Key Features

• Diffuse reflective sensing mode eliminates need for separate reflector or opposing receiver
• Non-contact object detection suitable for a wide range of target materials
• Self-contained sensor housing integrates emitter and receiver in a single unit
• Designed for integration into machine control and automation circuits

Compatibility

Designed as an OEM-style replacement or direct installation component for industrial and commercial photoelectric sensor applications requiring diffuse reflective detection.

Installation Notes

Installation should be performed by a licensed electrician or qualified automation technician in accordance with NEC requirements. Disconnect and lock out all power to the control circuit before wiring or mounting the sensor. Ensure proper alignment of the sensor face toward the target detection zone per the system design. Avoid exposing the sensor lens to direct contamination or physical impact that could affect detection reliability.

Technical Specifications

• Sensing Mode: Diffuse Reflective
• UPC: 78211384357

Standard Information

• Brand: EATON
• Manufacturer Part Number: 13106AQD07
