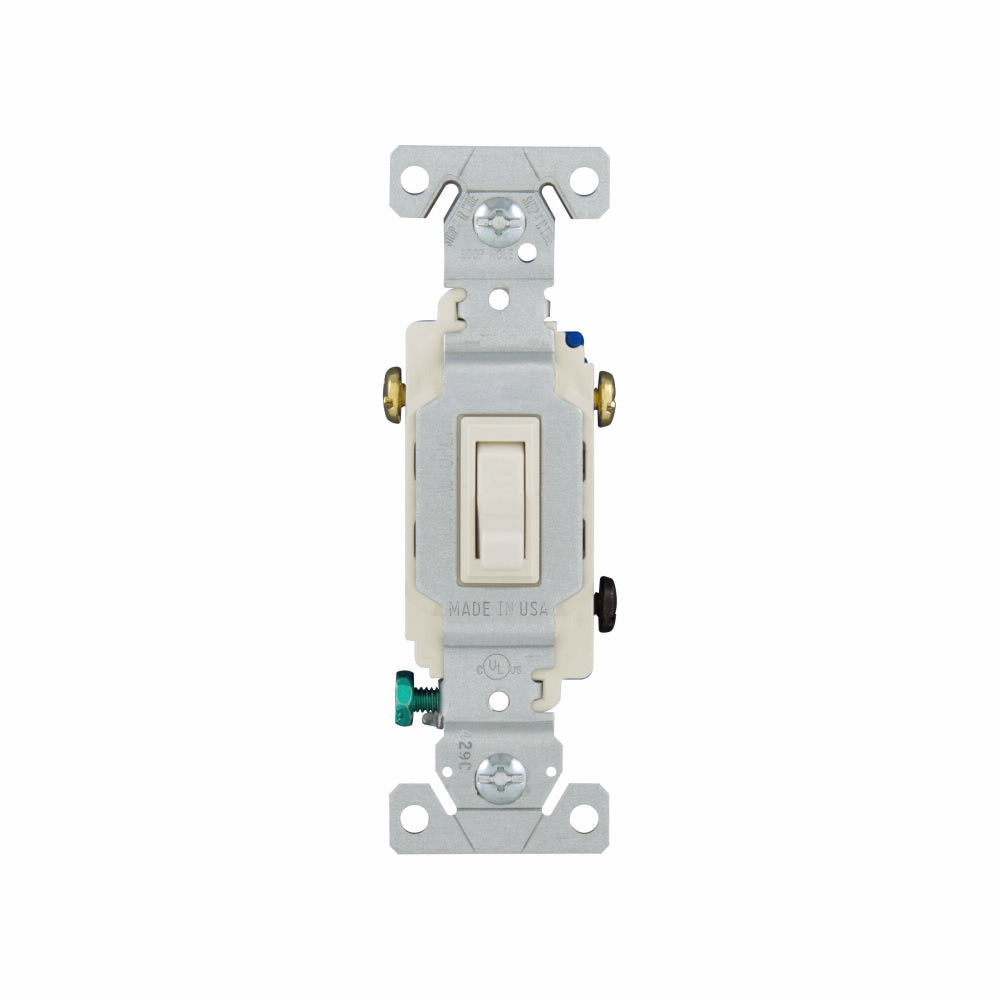

Eaton 1303-7LA Arrow Hart 3-Way Toggle Switch, 120 VAC, 15 A

Product Description

The EATON 1303-7LA Arrow Hart 3-Way Toggle Switch operates at 120 VAC and 15 A. The longer, wider strap provides 40% more contact area to the wall board, virtually eliminating floating installations. The industrial design cam action mechanism ensures quiet switch action. It features a patented built-in wire stripper for #14 and #12 wire.

• Longer, wider strap provides 40% more contact area.
• Industrial design cam action mechanism insures quiet switch action.
• Patented built-in wire stripper for #14 and #12 wire.

Product Highlights

This EATON toggle switch features a built-in wire looper for pre-looping and tri-combo screws that accept multiple tool types.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1303-7LA
• Country of Origin: USA

Technical Specifications

• Brand: EATON
• MPN: 1303-7LA
• UPC: 032664583636
• Product Type: TOGGLE_SWITCH
• Amperage: 15 Amp
• Voltage: 120-Volt
• Switch Type: 3-Way
• Grade: Standard Grade
• Actuator: Framed Toggle
• Amperage Rating: 15 A
• Application: Industrial, Residential Buildings and Facilities Applications
• Material: Polycarbonate/PVC/Thermoplastic
• Mounting: Wall
• Number of Poles: 1
• Power Rating: 1/2 hp
• Series: 1300
• Standards/Approvals: NAFTA Compliant|NOM 426|RoHS Compliant|UL 20 File No. E18704|UL 94 V-2 Flammability Rated|UL Listed
• Terminal Type: Side Wire/Push-In/Screw
• Type: 3-Way Grounding Standard/Specification Grade
• Voltage Rating: 120 V
• Mounting Type: Wall Mount
• Current Rating: 15 Amps
• Maximum Current: 15 Amps
• Operating Voltage: 120 Volts
• Operation Mode: ON-OFF
• Circuit Type: 3-way
• Material Type: Thermoplastic
• Allowable wire size: #14-10 AWG
• Torque rating: 14 lbf-inch
• Product Length/Depth: 1.31 in
• Product Height: 3.28 in
• Product Width: 0.88 in
• Product Weight: 0.14 lb
• Compliances: RoHS Compliant, NAFTA
• Certifications: cULus Listed, NOM
