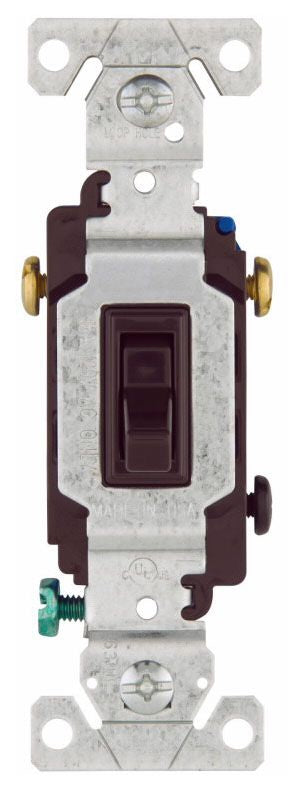

Eaton 1303-7B-BOX Toggle Switch 15A 120 V

Product Description

The EATON 1303-7B-BOX is an AC toggle switch with a current rating of 15A and a voltage rating of 120 VAC. This 3-way switch features push-in and side wiring options, accommodating wire sizes 14 AWG (push-in) and 10 AWG (side). It is suitable for residential applications and compatible with various load types including motor control, fan, LED, incandescent, ELV, MLV, CFL, fluorescent, and halogen.

• 15 Ampere current rating
• 120 VAC voltage rating
• 3-Way operation type

Product Highlights

The EATON 1303-7B-BOX toggle switch offers reliable performance with versatile wiring options and broad load compatibility.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1303-7B-BOX
• Country of Origin: USA

Technical Specifications

• Type: Toggle switch
• Current Rating: 15 A
• Voltage Rating: 120 V
• Operation Type: 3-Way
• Wiring Method: Back and side, push wire
• Allowable wire size: #14-10 AWG
• Mounting Type: Flush
• Application: Residential
• Load type: Fan, LED, CFL, ELV, Motor Control, INC, HAL, MLV, FLR
• Material: Polycarbonate
• Number of poles: Single-pole
• Number of ways: Three-way
• Torque rating: 14 lbf-inch
• Compliances: RoHS Compliant, NAFTA
• Certifications: cULus Listed, NOM
• Product Length/Depth: 1.31 in
• Product Height: 3.28 in
• Product Width: 0.88 in
• Actuator Type: Toggle
• Contact Material: Silver
• Dielectric Strength: 1500 V
• Housing Material: Polycarbonate
• Temperature Rating: -20 to 60 deg C
• Wattage Rating: 0.5 hp
• Wiring: Push-In, Side
• Wire Size: 14 AWG (Push-In), 10 AWG (Side)
• Country Of Origin: USA
