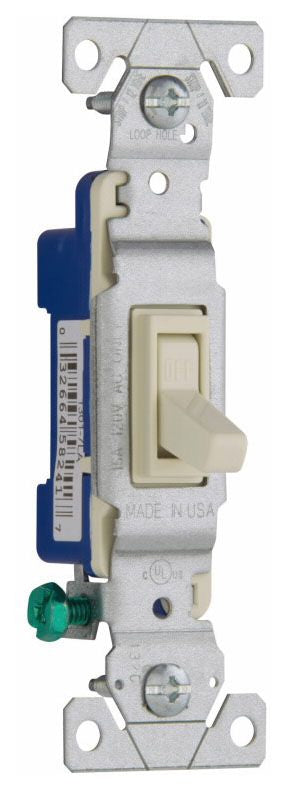

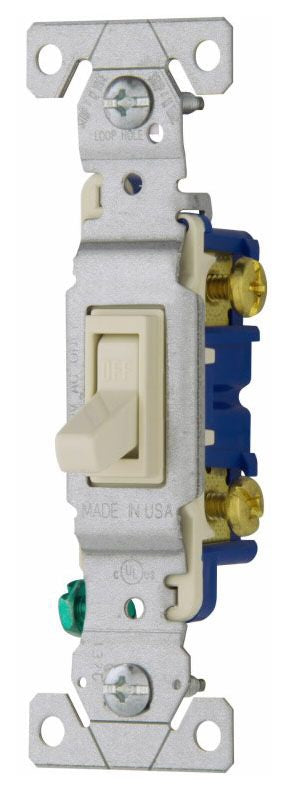

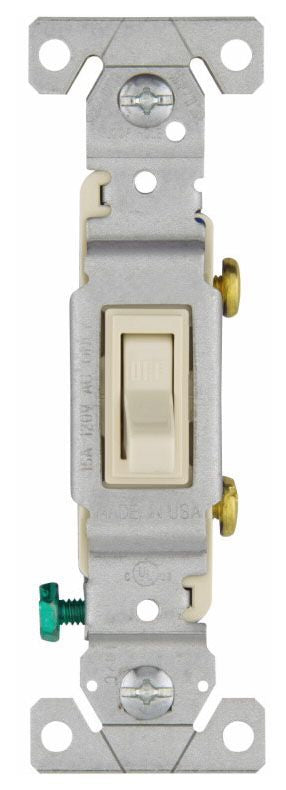

Eaton 1301-7LA Wiring Devices Arrow Hart Toggle Switch, 120 VAC, 15 A

Product Description

The Eaton 1301-7LA Arrow Hart toggle switch features a longer, wider strap providing 40% more contact area. The industrial design cam action mechanism ensures quiet switch action. It has a patented built-in wire stripper for #14 and #12 wire to speed installation. The switch is rated for 120 VAC at 15 A.

• Longer, wider strap provides 40% more contact area
• Industrial design cam action mechanism insures quiet switch action
• Patented built-in wire stripper for #14 and #12 wire
• Tri-combo screws accept slotted-, Phillips, and Robertson-head tools

Product Highlights

This Eaton Arrow Hart toggle switch offers easy installation and reliable performance for residential and industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1301-7LA
• Country of Origin: USA

Technical Specifications

• Voltage: 120 VAC
• Amperage: 15 A
• Application: Toggle Switch
• Operation Type: 1-Pole
• Current Rating: 15 Ampere
• Wiring: Push-in; Side Wiring
• Approval: UL 20; CSA C22.2; NOM 426
• Grounding Type: Grounding
• Switch Type: Single Pole
• Grade: Standard Grade
• Wiring Method: Side wire and push wiring
• Actuator: Framed Toggle
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Material: Polycarbonate/PVC/Thermoplastic
• Mounting: Wall
• Number of Poles: 1
• Power Rating: 1/2 hp
• Series: 1300
• Standards/Approvals: NAFTA Compliant|NOM 426|RoHS Compliant|UL 20 File No. E18704|UL 94 V-2 Flammability Rated|UL Listed
• Terminal Type: Side Wire/Push-In/Screw
• Type: Grounding Standard/Specification Grade
• Voltage Rating: 120 V
• Product Length/Depth: 1.31 in
• Product Height: 3.28 in
• Product Width: 0.88 in
• Compliances: RoHS Compliant, NAFTA
• Certifications: cULus Listed, NOM
• Product Type: Toggle switch
• Wiring method: Side and push
• Mounting method: Flush
• Connector type: Screw
• Load type: MLV, FLR, ELV, CFL, HAL, INC, LED, Fan, Motor Control
• Allowable wire size: #14-10 AWG
• Torque rating: 14 lbf-inch
