EATON 1301-7LA CWD SWITCH TOGGLE SP 15A 120V GRD LA

Product Description

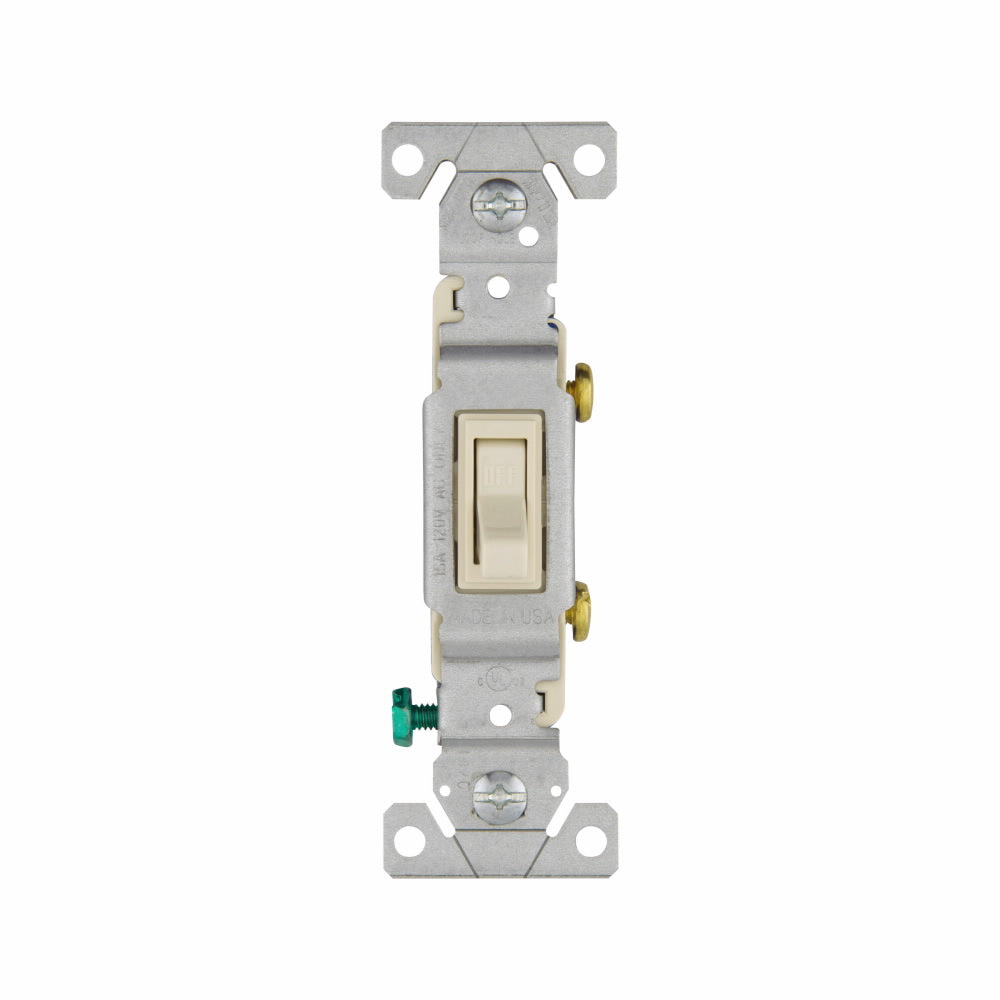

EATON Arrow Hart 1301-7LA is a grounding standard grade toggle switch that operates at one hundred twenty volts. It is designed for a current of fifteen amperes with a half horsepower power rating. This single pole toggle switch is suitable for various applications, including residential and industrial use.

• Meets environmental conditions of negative twenty to sixty degrees Celsius.
• Compatible with side wire, push-in, and screw terminal connections.
• Constructed from durable polycarbonate and thermoplastic materials.

Product Highlights

This toggle switch has a patented built-in wire stripper for quick installation and tri-combo screws for flexible installation options. Its design prevents floating installations and provides a lighted toggle that glows in the off position.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1301-7LA

Technical Specifications

• Voltage Rating: 120 V
• Amperage Rating: 15 A
• Power Rating: 1/2 hp
• Dimensions: 0.75 in W x 0.88 in D
• Number of Poles: 1
• Actuator: Framed Toggle
• Mounting: Wall
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Material: Polycarbonate/PVC/Thermoplastic
