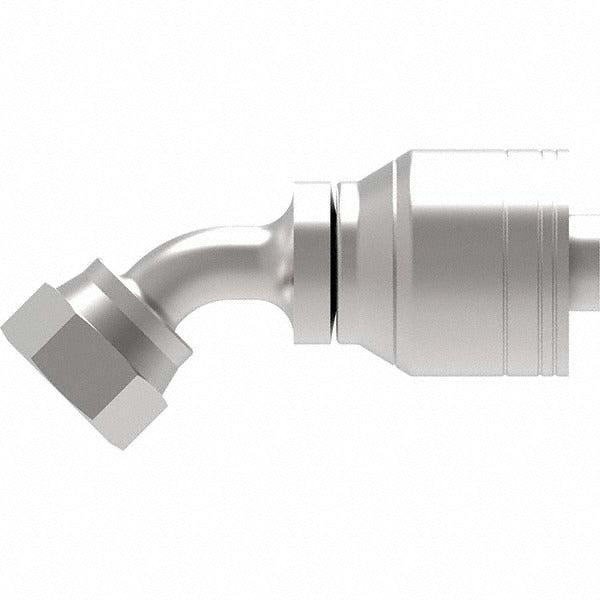

Eaton 12Z-L72-BG Female Ors Swivel 45 Elbow 12mm

Product Description

The EATON 12Z-L72-BG is a female ORS swivel 45-degree elbow hydraulic hose fitting machined from steel. It is designed to connect hydraulic hoses to ports and components in high-pressure fluid power systems. The fitting uses an O-ring face seal (ORS) design, which provides a leak-free metal-to-female-thread connection with a swivel nut for easy assembly and alignment. With a 1-3/16-12 thread size and a hose size of 12 mm, this fitting is installed by hydraulic technicians and equipment maintenance professionals on mobile and industrial hydraulic systems.

This fitting is suited for use in agricultural equipment, construction machinery, industrial hydraulic circuits, and other fluid power applications where a 45-degree elbow routing is needed. The FOR-SEAL shaft type is compatible with standard ORS port connections. The 13/16-inch hose diameter and 1-3/8-inch hex size allow use with common hand and power tools during hose assembly and installation.

Key Features

• Female ORS swivel design provides a reliable, leak-resistant O-ring face seal connection
• 45-degree elbow angle allows compact hose routing in tight spaces
• FOR-SEAL shaft type for use with standard ORS face seal ports
• Steel construction for durability in high-pressure hydraulic service
• Swivel nut simplifies alignment during installation without twisting the hose
• 1-3/8-inch hex size compatible with standard open-end and combination wrenches

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies using 12 mm hose with 1-3/16-12 female ORS swivel thread connections in mobile and industrial fluid power systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system safety procedures. Relieve all hydraulic system pressure and depressurize accumulators before disconnecting or replacing fittings. Inspect the O-ring sealing surface and replace the O-ring if any damage or deformation is present before assembly. Torque the swivel nut using the correct open-end wrench on the 1-3/8-inch hex; do not use the fitting body as a torque point.
