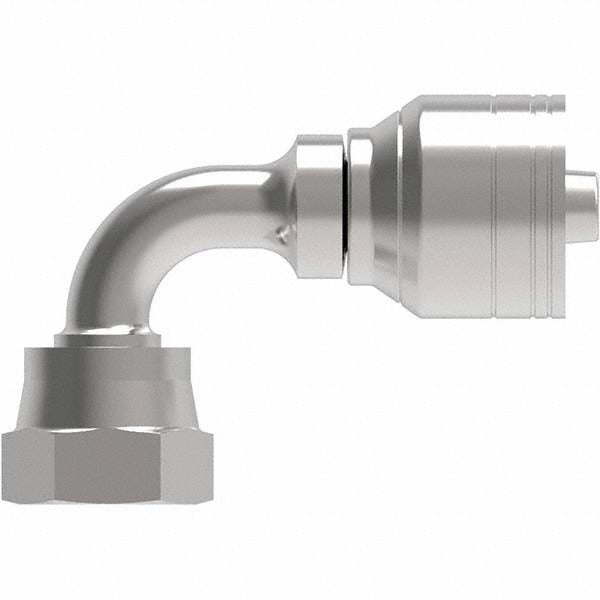

Eaton 12Z-A72-BG Hydraulic Hose Fitting Female Ors 90 Elbow

Product Description

The EATON 12Z-A72-BG is a female ORS swivel long drop 90-degree elbow fitting designed for hydraulic hose assemblies. Constructed from steel with a FOR-SEAL shaft type, this fitting provides a reliable, leak-resistant connection at a 90-degree angle, making it well suited for routing hose lines in tight or angled installations. It accepts a 12 mm hose size with a 13/16-inch hose diameter and a 1-3/16-12 thread size, with a 1-3/8-inch hex for wrench engagement. Licensed hydraulic technicians and fluid power specialists install this fitting in mobile and industrial hydraulic systems.

This fitting is used in hydraulic hose assemblies where a long drop 90-degree elbow configuration is required to manage hose routing away from ports or manifolds. The swivel design allows the hose to be positioned without twisting during assembly. Typical applications include mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic circuits where angled hose terminations are needed to avoid interference with surrounding components.

Key Features

• Female ORS swivel long drop 90-degree elbow configuration for angled hose routing
• FOR-SEAL shaft type for secure, leak-resistant sealing at the port connection
• Steel construction for durability in high-pressure hydraulic service
• 1-3/16-12 thread size with 13/16-inch hose diameter for positive hose retention
• 1-3/8-inch hex size for standard wrench installation and removal
• Swivel design allows hose positioning without inducing twist during assembly

Compatibility

Designed as an OEM-style replacement hydraulic hose elbow fitting for systems requiring a 12 mm female ORS swivel long drop 90-degree elbow with a 1-3/16-12 thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed the hydraulic system fully before removing or installing any fittings. Use the 1-3/8-inch hex to torque the fitting with an appropriately sized wrench, and inspect the ORS sealing surface and O-ring for damage before assembly. Follow applicable equipment manufacturer specifications and industry fluid power standards for assembly procedures.
