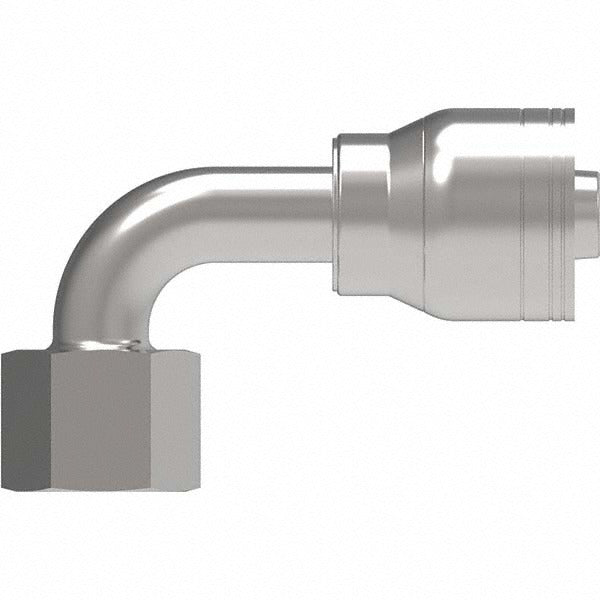

Eaton 12Z-A32-BG Female Ors Swivel 90 Elbow Fitting 12mm

Product Description

The EATON 12Z-A32-BG is a female ORS swivel short drop 90-degree elbow fitting designed for hydraulic hose assemblies. It accepts a 12 mm hose size with a 13/16-inch hose diameter and connects via a 1-3/16-12 thread. Constructed from steel with a FOR-SEAL shaft type, this fitting is built to handle the demands of hydraulic systems in mobile and industrial applications. It is sized with a 1-3/8-inch hex for standard wrench installation. Licensed hydraulic technicians and fluid power specialists are the primary installers of this component.

This fitting is suited for hydraulic hose routing where a 90-degree directional change is required in tight or space-constrained installations. The short drop elbow geometry reduces the overall profile compared to a standard elbow, making it appropriate for equipment where clearance is limited. Typical applications include mobile machinery, construction equipment hydraulic circuits, and industrial hydraulic plumbing where ORS swivel connections are specified.

Key Features

• Female ORS swivel design allows rotation during assembly without twisting the hose
• Short drop 90-degree elbow geometry for use in tight clearance applications
• Steel construction for durability in high-pressure hydraulic environments
• FOR-SEAL shaft type for reliable leak-resistant sealing
• 1-3/8-inch hex size compatible with standard wrench tooling
• 13/16-inch hose diameter with 1-3/16-12 thread for precise fitment

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a 12 mm female ORS swivel short drop 90-degree elbow with a 1-3/16-12 thread and 13/16-inch hose diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Use the 1-3/8-inch hex and apply appropriate thread sealant or confirm the FOR-SEAL face seal is properly seated before torquing. Do not over-tighten, as this can damage the swivel seat or thread engagement.
