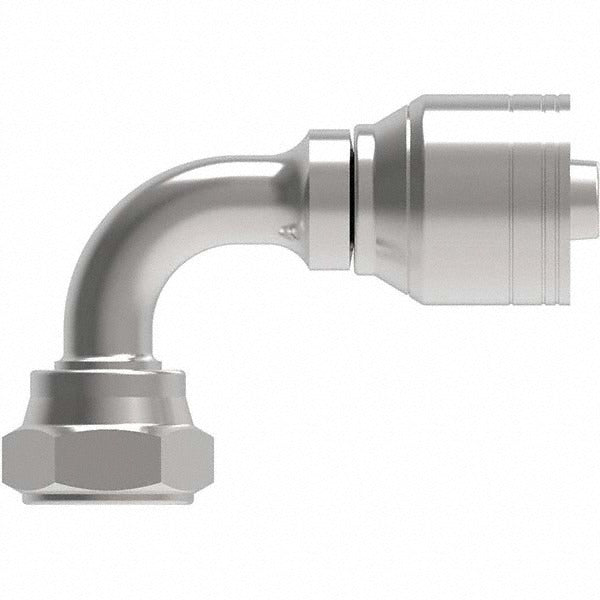

Eaton 12Z-82P-BG Bspp 60 Cone Female 90 Elbow Fitting

Product Description

The EATON 12Z-82P-BG is a steel hydraulic hose fitting designed in a 90-degree elbow configuration with a BSPP 60-degree cone female end. It accepts a 3/4-inch hose and threads onto a G 3/4-14 BSPP port. The 90-degree elbow geometry allows routing hose assemblies in tight or angled installations where a straight fitting cannot clear surrounding components. At 0.65 pounds and with a hex size of 1-17/64 inches, this fitting is suited for professional hydraulic system assembly and maintenance work. It is installed by hydraulic system technicians and fluid power specialists in industrial, mobile, and off-highway equipment applications.

This fitting is used in hydraulic hose assemblies that terminate at BSPP-ported components such as valves, cylinders, pumps, and manifolds. The BSPP 60-degree cone sealing interface provides a metal-to-metal seal that is common in European and international hydraulic equipment. Typical applications include mobile equipment, construction machinery, agricultural equipment, and industrial hydraulic circuits where G 3/4-14 BSPP ports are present. It is sold individually and is appropriate as a replacement or new-assembly fitting in systems requiring angled hose routing at the 3/4-inch hose size.

Key Features

• 90-degree elbow design allows angled hose routing in space-constrained installations
• BSPP 60-degree cone female end provides metal-to-metal sealing at G 3/4-14 ports
• Steel construction for durability in high-pressure hydraulic service
• Accepts 3/4-inch hydraulic hose
• 1-17/64 inch hex size for standard wrench installation and torquing
• Compact dimensions support tight routing: 3.24 inches length, 1.87 inches height, 1.26 inches width

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for hydraulic hose systems requiring a G 3/4-14 BSPP 60-degree cone female port connection at a 3/4-inch hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings, and drain residual fluid as needed. Use a calibrated torque wrench with the appropriate open-end or crowfoot attachment sized for the 1-17/64 inch hex. Follow the equipment manufacturer and applicable fluid power standards for torque and assembly procedures specific to BSPP 60-degree cone fittings.
