Eaton 12Z-72D-BG Hydraulic Hose Fitting 12mm Din 24 Seat

Product Description

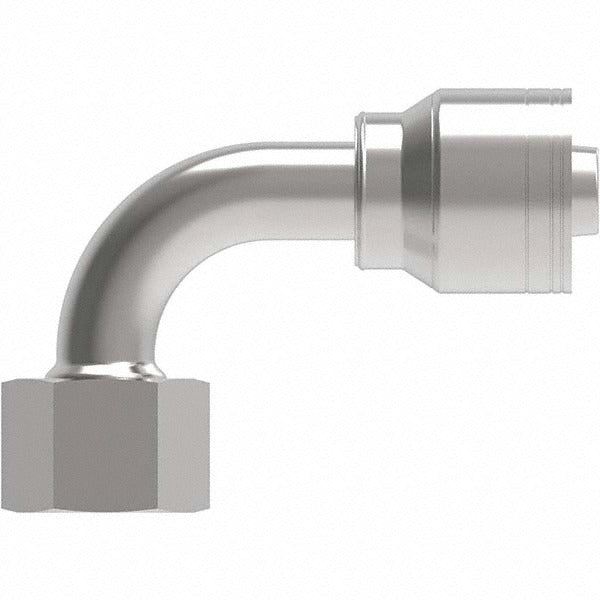

The EATON 12Z-72D-BG is a female swivel DIN 24 seat hydraulic hose fitting designed for metric hydraulic systems. Constructed from steel, this 90-degree light-duty fitting connects a 12 mm hose to a threaded port using an M30 x 2.00 metric thread. The swivel design allows the hose to be positioned without twisting during assembly, reducing installation stress and potential leak points. It is sized for a 7/8 inch hose diameter and uses a 1-27/64 inch hex for wrench engagement. This fitting is a standard component in mobile equipment, industrial machinery, and hydraulic power unit plumbing where DIN 24 cone seat connections are specified.

This fitting is suited for hydraulic circuits in agricultural, construction, and industrial equipment that require DIN 24 metric cone seat connections. The 90-degree elbow configuration is commonly used where hose routing must change direction near a port to avoid tight bends or interference with adjacent components. Licensed hydraulic technicians and fluid power specialists typically specify and install this type of fitting in medium-pressure hydraulic circuits where metric thread standards are required.

Key Features

• Female swivel design allows hose rotation during installation without twisting the hose assembly
• DIN 24 cone seat provides a reliable metal-to-metal seal at the fitting interface
• 90-degree light-duty elbow configuration supports directional hose routing in tight spaces
• M30 x 2.00 metric thread for compatibility with DIN-standard hydraulic ports
• Steel construction for durability in industrial and mobile hydraulic applications
• 1-27/64 inch hex size accommodates standard open-end or combination wrenches

Compatibility

Designed as an OEM-style replacement metric hydraulic hose fitting for systems specifying DIN 24 cone seat, M30 x 2.00 thread, and 12 mm hose size connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect the DIN 24 cone seat surface for damage or contamination before assembly, as a clean seating surface is critical to achieving a leak-free connection. Torque to the fitting manufacturer specifications using the appropriate wrench on the hex flats — never use pipe wrenches or pliers on hydraulic swivel fittings.
