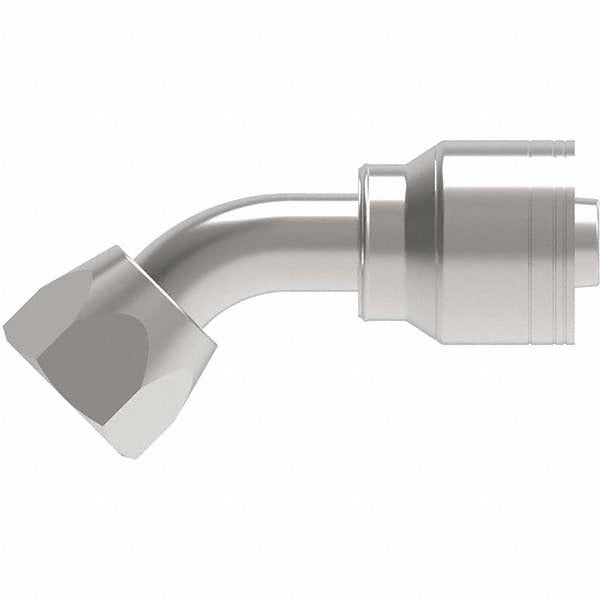

Eaton 12Z-692-BG Hydraulic Hose Female Jic Swivel 45 Elbow

Product Description

The EATON 12Z-692-BG is a female JIC swivel 45-degree elbow hydraulic hose fitting manufactured from steel. It connects hydraulic hose assemblies to ports or adapters where a 45-degree angle routing is required, reducing stress on hose ends and improving line routing in tight spaces. The fitting features a 1-1/16-12 thread size, a 0.75-inch hose inside diameter, and a JIC 37-degree flare seating surface. It belongs to EATON's Z Series and meets SAE J1176 standards. Licensed hydraulic technicians and fluid power specialists install this fitting in mobile equipment, industrial hydraulic circuits, and agricultural machinery where precise angle routing is critical.

This fitting is suited for medium- to high-pressure hydraulic hose assemblies requiring a female JIC swivel connection at a 45-degree elbow angle. It is used in both mobile and stationary hydraulic systems where hose routing clearance is limited and a straight fitting would create unacceptable bending or strain near the hose end. The swivel design allows the fitting body to rotate during installation, making it easier to achieve the correct assembly orientation without twisting the hose itself.

Key Features

• Female JIC 37-degree flare swivel design allows rotation during installation to prevent hose twist
• 45-degree elbow angle improves hose routing in confined or angled port locations
• 1-1/16-12 thread size with 1-1/4-inch hex for standard wrench engagement
• Steel construction for durability in hydraulic service environments
• Meets SAE J1176 standard for JIC hydraulic fittings
• Overall length of 3.43 inches keeps assembly compact

Compatibility

Specified for use with EATON hose series EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed the hydraulic system fully before disconnecting or replacing any fitting. Use the 1-1/4-inch hex to torque the fitting with an appropriate crowfoot or open-end wrench; do not grip the swivel collar when applying torque. Inspect the JIC 37-degree flare seating surface and mating port for damage or contamination before assembly.
