Eaton 12Z-652-BG Female Jic Swivel 90 Elbow 12mm

Product Description

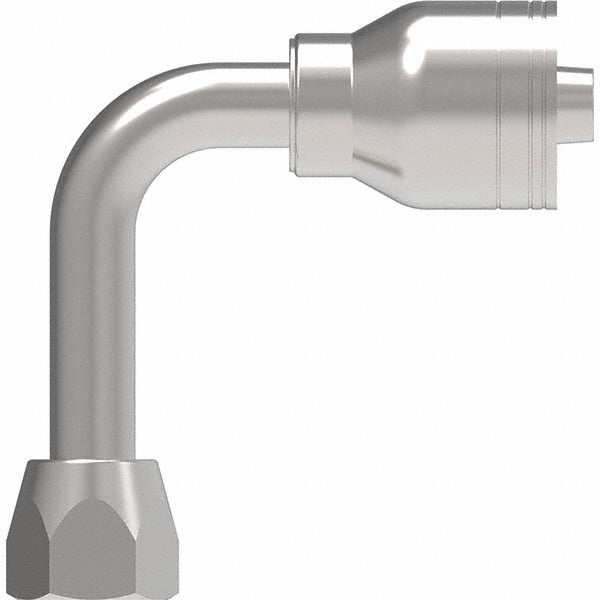

The EATON 12Z-652-BG is a long drop female JIC swivel 90-degree elbow fitting designed for hydraulic hose assemblies. It connects a 12mm hose to a 1-1/16-12 threaded port using a JIC 37-degree flare seat, providing a reliable, leak-resistant joint under hydraulic pressure. Constructed from steel, the fitting is built to handle the mechanical demands of high-pressure hydraulic circuits. The swivel design allows the hose to be positioned without twisting during assembly, which reduces strain on the hose end. Typical installers include hydraulic technicians and heavy-equipment mechanics working on mobile or industrial hydraulic systems.

This fitting is used in hydraulic plumbing applications where a 90-degree directional change is required at the hose termination point. The long drop configuration provides additional clearance between the port and the hose routing path, which is useful in tight equipment compartments. It is suited for use in agricultural, construction, and industrial mobile equipment where JIC-style hydraulic connections are standard. The 1-1/16-12 thread size is common on hydraulic pumps, cylinders, valves, and manifold ports.

Key Features

• Long drop body geometry provides extra hose routing clearance in confined spaces
• JIC 37-degree flare seat delivers a metal-to-metal seal without a separate sealing element
• Swivel nut allows hose positioning without twisting the hose assembly
• Steel construction for durability in high-pressure hydraulic service
• 1-1/4 inch hex size for standard wrench installation and torque control

Compatibility

Designed as an OEM-style replacement for hydraulic hose assemblies using 12mm hose ends and 1-1/16-12 JIC female swivel connections in mobile and industrial hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Use a properly sized open-end or crow-foot wrench on the 1-1/4 inch hex to avoid rounding the fitting body. Inspect the JIC flare seat on both the fitting and the mating male JIC for nicks or damage before final assembly to ensure a leak-free connection.
