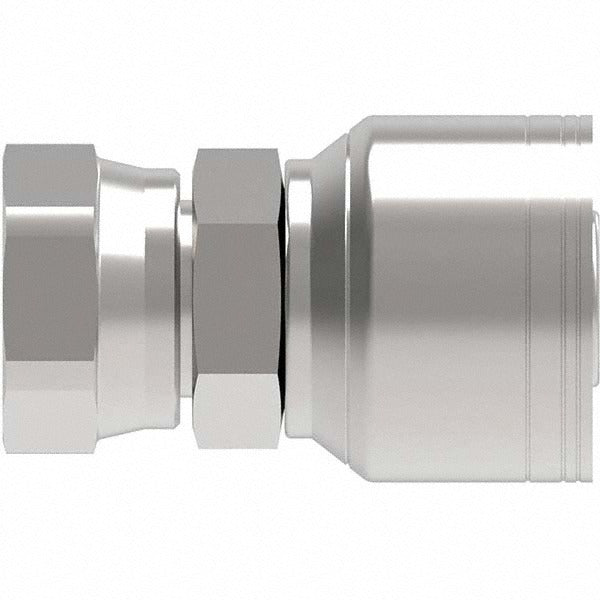

Eaton 12Z-614-BG Female Jic 37 Swivel Fitting 12mm Steel

Product Description

The EATON 12Z-614-BG is a female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. Constructed from steel, it accepts a 12 mm hose size and uses a 1-3/16-12 thread for secure, leak-resistant connections in hydraulic systems. The swivel design allows the fitting to rotate during assembly, reducing hose twist and making installation easier in tight or angled routing situations. This fitting is typically installed by hydraulic technicians, equipment mechanics, and maintenance professionals working on mobile or industrial hydraulic circuits.

This fitting is suited for use in hydraulic hose assemblies where a JIC 37-degree female swivel end connection is required. It is commonly used in agricultural equipment, construction machinery, industrial hydraulic systems, and other fluid-power applications where reliable high-pressure hose terminations are critical. The 1-3/16-12 thread size is a standard JIC specification, making this fitting applicable across a wide range of hose and component pairings in professional hydraulic service work.

Key Features

• Female JIC 37-degree swivel design reduces hose twist during installation
• Steel construction provides strength and durability in hydraulic service environments
• 12 mm hose size with 1-3/16-12 thread for standard JIC connections
• Swivel end allows rotational adjustment for easier routing and assembly
• Sold as individual fitting — package quantity of 1

Compatibility

Designed as an OEM-style replacement JIC 37-degree female swivel fitting for hydraulic hose assemblies requiring a 12 mm hose size and 1-3/16-12 thread connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Before servicing any hydraulic connection, fully depressurize and bleed down the hydraulic system to zero pressure and relieve any stored energy in accumulators or actuators. Thread engagement should be confirmed to be clean and free of damage before assembly. Inspect the JIC seating surface for nicks or scoring that could compromise the metal-to-metal seal.
