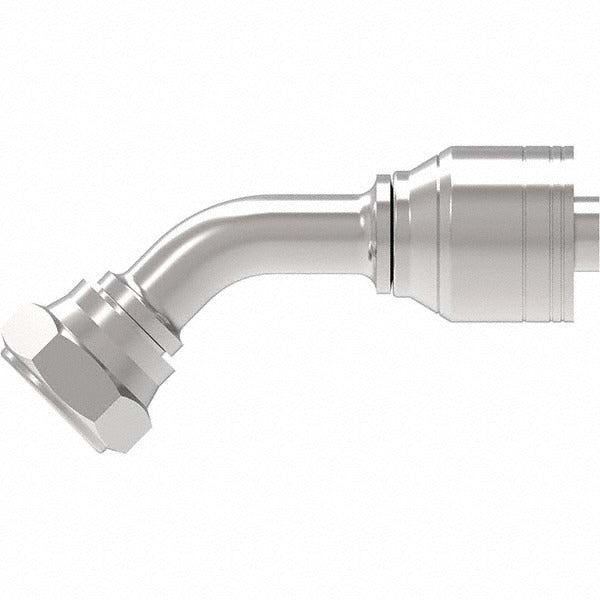

Eaton 12Z-52P-BG Hydraulic Hose Fitting Bspp 45 Elbow 3/4 in

Product Description

The EATON 12Z-52P-BG is a steel hydraulic hose fitting configured as a BSPP 60-degree cone female 45-degree elbow. It connects a 3/4-inch hydraulic hose to a G 3/4-14 BSPP threaded port at a 45-degree angle, reducing stress on hose assemblies in tight routing applications. The 60-degree cone seat provides a metal-to-metal seal suited for high-pressure hydraulic systems. Constructed from steel for durability in demanding fluid power environments, this fitting is installed by hydraulic system technicians and maintenance mechanics working on mobile or industrial hydraulic circuits.

This fitting is used in hydraulic plumbing applications where hose routing requires a 45-degree change in direction from a BSPP-ported component. Typical installations include mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic power units that use BSPP (British Standard Parallel Pipe) threaded connections. The 3/4-inch hose size and G 3/4-14 thread make it a common choice for mid-flow hydraulic circuits operating within standard industrial pressure ranges.

Key Features

• 45-degree elbow configuration reduces hose strain in space-constrained routing
• 60-degree cone female seat provides a reliable metal-to-metal hydraulic seal
• G 3/4-14 BSPP thread for compatibility with standard BSPP-ported components
• 3/4-inch hose diameter accommodates mid-flow hydraulic lines
• Steel construction for strength and resistance to hydraulic fluid environments
• 1-17/64-inch hex size allows use with standard open-end or combination wrenches

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a 3/4-inch BSPP 60-degree cone female 45-degree elbow connection with a G 3/4-14 thread size.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Use the correct open-end or combination wrench sized to the 1-17/64-inch hex to avoid rounding the fitting. Inspect the cone seat and mating port for damage or debris before assembly to ensure a leak-free seal.
