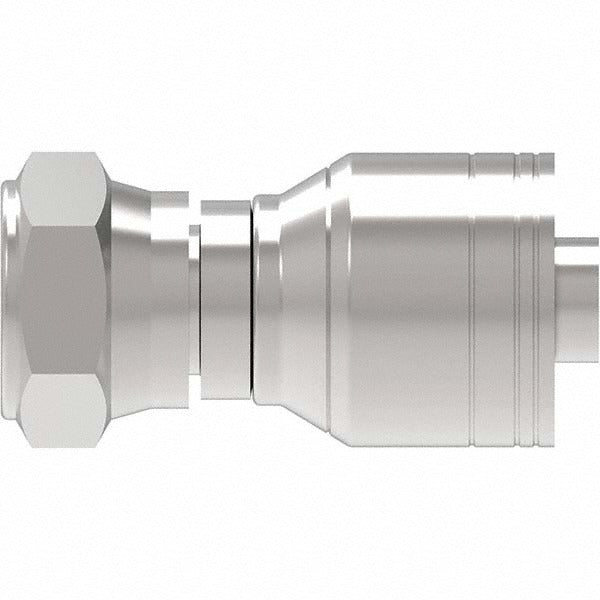

Eaton 12Z-362-BG Bspp Swivel Straight Hydraulic Fitting

Product Description

The EATON 12Z-362-BG is a BSPP 60 cone female swivel straight fitting designed for hydraulic hose assemblies. It accepts a 12 mm hose size with a G 3/4-14 BSPP thread and is constructed from steel for durability under hydraulic system pressure. The swivel design allows the hose end to rotate during installation, reducing torsional stress on the hose and simplifying routing in tight spaces. This fitting is a standard replacement component used by hydraulic technicians and fluid power specialists to terminate or repair hydraulic hose lines on mobile and industrial equipment.

This fitting is suited for hydraulic systems requiring BSPP threaded connections with a 60-degree cone seat. It is commonly installed on mobile equipment, industrial machinery, and fluid power circuits where G 3/4-14 BSPP thread engagement is specified. The straight configuration is appropriate for in-line hose routing where no angular offset is needed. Its steel construction and swivel end make it a reliable choice for high-pressure hydraulic circuits in both original assembly and field repair applications.

Key Features

• BSPP 60 cone female swivel straight configuration for in-line hydraulic hose termination
• 12 mm hose size with 3/4 inch hose diameter compatibility
• G 3/4-14 BSPP thread size for standard British parallel pipe thread engagement
• Steel construction for pressure resistance and durability in hydraulic service
• Swivel end reduces hose torsion during installation and routing
• 1-17/64 inch hex size for wrench engagement during assembly

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a BSPP 60 cone female swivel straight connection at 12 mm hose size with G 3/4-14 thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the cone seat and threads for damage before assembly, and torque to the equipment manufacturer's specified value using the proper wrench on the hex flat. Do not use pipe thread sealant on BSPP cone-seat fittings, as the 60-degree cone provides the primary seal.
