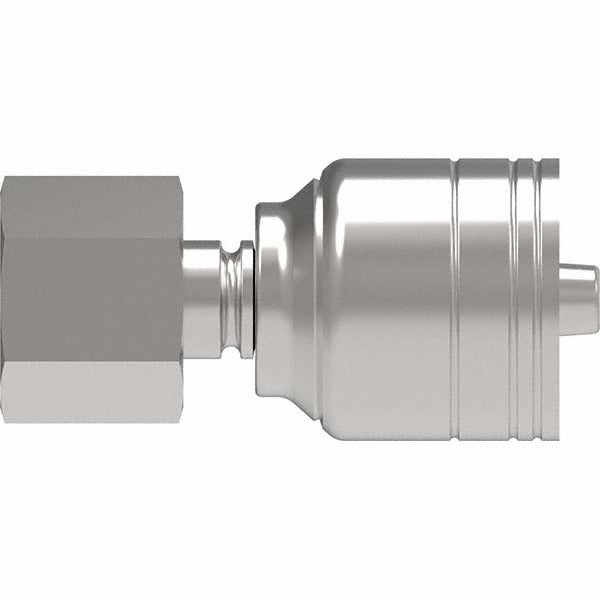

Eaton 12Z-22C-BG Hydraulic Hose Female Swivel Fitting 12mm

Product Description

The EATON 12Z-22C-BG is a female swivel DIN 24 seat light hydraulic hose fitting designed for metric hose assemblies in mobile and industrial hydraulic systems. Constructed from steel, this fitting accepts a 12 mm hose size with a 7/8 inch hose diameter and uses an M30 x 2.00 thread. The swivel design allows the fitting to rotate during assembly, reducing hose twist and making connections easier to torque in tight spaces. It weighs approximately 0.5 pounds and is sold individually. Licensed hydraulic technicians and fluid power specialists install this type of fitting in high-pressure hose fabrication and repair work.

This fitting is suited for metric hydraulic hose assemblies in agricultural equipment, construction machinery, and industrial fluid power applications. The DIN 24 seat light configuration is a standard interface in European and metric-designed hydraulic circuits. It is typically used where a female swivel end connection is required at a hose-to-port junction. Fabricators and service technicians working with metric hydraulic systems will find this fitting compatible with standard DIN 24 cone seat port connections in light-duty pressure service.

Key Features

• Female swivel design reduces hose twist during assembly and tightening
• DIN 24 seat light interface for metric hydraulic circuit connections
• Steel construction for durability in hydraulic service environments
• M30 x 2.00 thread size for metric port compatibility
• 1-27/64 inch hex size for standard wrench installation
• Sold individually with no minimum order beyond single-unit purchase

Compatibility

Designed as an OEM-style replacement swivel fitting for metric hydraulic hose assemblies using DIN 24 seat light female connections with 12 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the hydraulic system completely before removing or installing any fittings. Use the correct open-end or combination wrench sized to the 1-27/64 inch hex to avoid rounding the fitting body. Inspect the DIN 24 seat and mating port cone surface for damage or contamination before assembly to ensure a leak-free connection.
