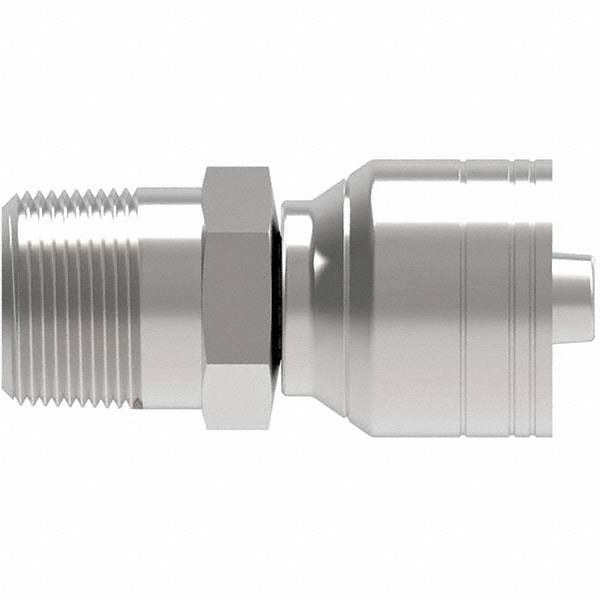

Eaton 12Z-116-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

The EATON 12Z-116-BG is a male pipe rigid fitting designed for hydraulic hose assemblies. It provides a fixed, non-swivel connection point between a hydraulic hose and a male pipe threaded port. Constructed from steel, this fitting is built for the demands of industrial and mobile hydraulic systems. It accepts a 1-inch hose diameter and features a 1-11/2 male pipe thread (MPT) with a 1-3/8 inch hex for wrench engagement. Hydraulic technicians and maintenance mechanics use this type of rigid fitting where a permanent, leak-resistant connection is required and hose rotation is not needed.

This fitting is suited for use in hydraulic fluid power systems across industrial, agricultural, and mobile equipment applications. It is typically installed at pump ports, valve bodies, cylinder connections, or manifold blocks where a straight male pipe rigid end connection is specified. The steel construction makes it appropriate for moderate-to-high pressure hydraulic circuits in both shop-fabricated and OEM replacement hose assemblies.

Key Features

• Male pipe rigid (non-swivel) fitting for permanent hose-to-port connections
• Steel construction for durability in hydraulic fluid power applications
• 1 inch hose diameter accommodates standard large-bore hydraulic hose
• 1-11/2 MPT thread provides a secure pipe thread port connection
• 1-3/8 inch hex size allows standard wrench installation and removal

Compatibility

Designed as an OEM-style replacement rigid pipe fitting for hydraulic hose assemblies requiring a 1-inch hose diameter and 1-11/2 male pipe thread connection in steel construction.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with hydraulic fluid power systems. Depressurize and bleed the hydraulic circuit completely before removing or installing any fittings. Apply thread sealant appropriate for hydraulic service to the MPT threads per the system manufacturer and applicable industry standards. Inspect the mating port threads for damage before assembly and torque to the fitting and port manufacturer specifications using a properly sized wrench on the hex.
