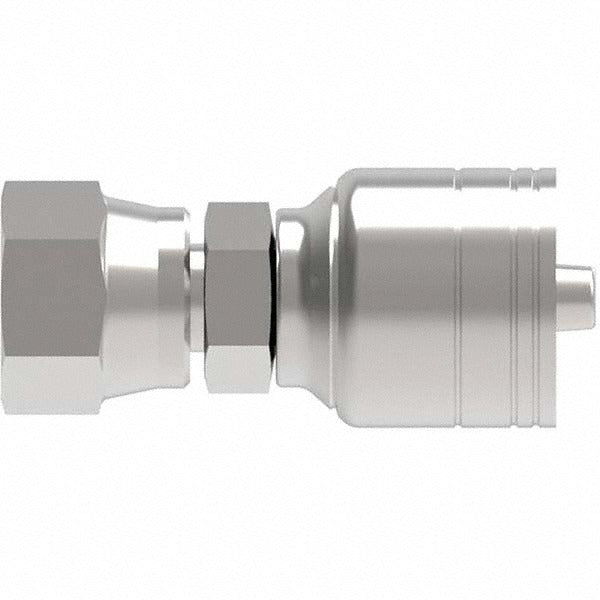

Eaton 12Z-062-BG Hydraulic Hose Swivel Fitting 3/4-14 Fpt

Product Description

The EATON 12Z-062-BG is a female straight pipe swivel fitting designed for hydraulic hose assemblies. It provides a rotatable, leak-resistant connection between a hydraulic hose and a fixed-pipe port, allowing technicians to route hoses without twisting the hose body during final tightening. The fitting accepts a 3/4-inch hose and uses a 3/4-14 female pipe thread (FPT) interface. Constructed from steel, it is built to handle the mechanical stress and pressure cycling common in hydraulic systems. This type of fitting is typically installed by hydraulic system technicians, industrial maintenance mechanics, and mobile equipment service professionals.

This fitting is suited for use in industrial and mobile hydraulic circuits where a straight, female-threaded swivel connection is required at the hose end. It is appropriate for applications on construction equipment, agricultural machinery, and industrial power units where hose routing flexibility is needed and the mating port carries a standard pipe thread. The 3/4-14 thread size is a common NPT configuration found across a wide range of hydraulic manifolds, cylinders, and valve bodies.

Key Features

• Female straight pipe swivel design allows hose positioning without twisting the hose during installation
• 3/4-14 FPT thread interfaces with standard pipe-thread hydraulic ports
• Accepts 3/4-inch hydraulic hose for a secure, positive connection
• Steel construction provides durability under hydraulic system pressure cycling and vibration
• Compact envelope: 2.62 inches length, 1.56 inches width, 1.56 inches height

Compatibility

Designed as an OEM-style replacement swivel fitting for hydraulic hose assemblies using 3/4-inch hose and 3/4-14 female pipe thread connections in industrial and mobile equipment hydraulic systems.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic. Depressurize and isolate the hydraulic circuit completely before removing any fittings or hose assemblies. Apply appropriate thread sealant compatible with hydraulic fluid to the pipe threads before assembly, and tighten to the fitting manufacturer's recommended torque range for the thread size and material. Inspect the swivel joint for freedom of rotation and confirm there is no leakage at system operating pressure before returning the equipment to service.
