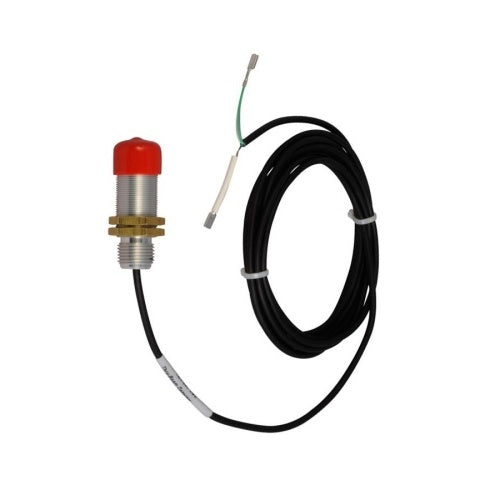

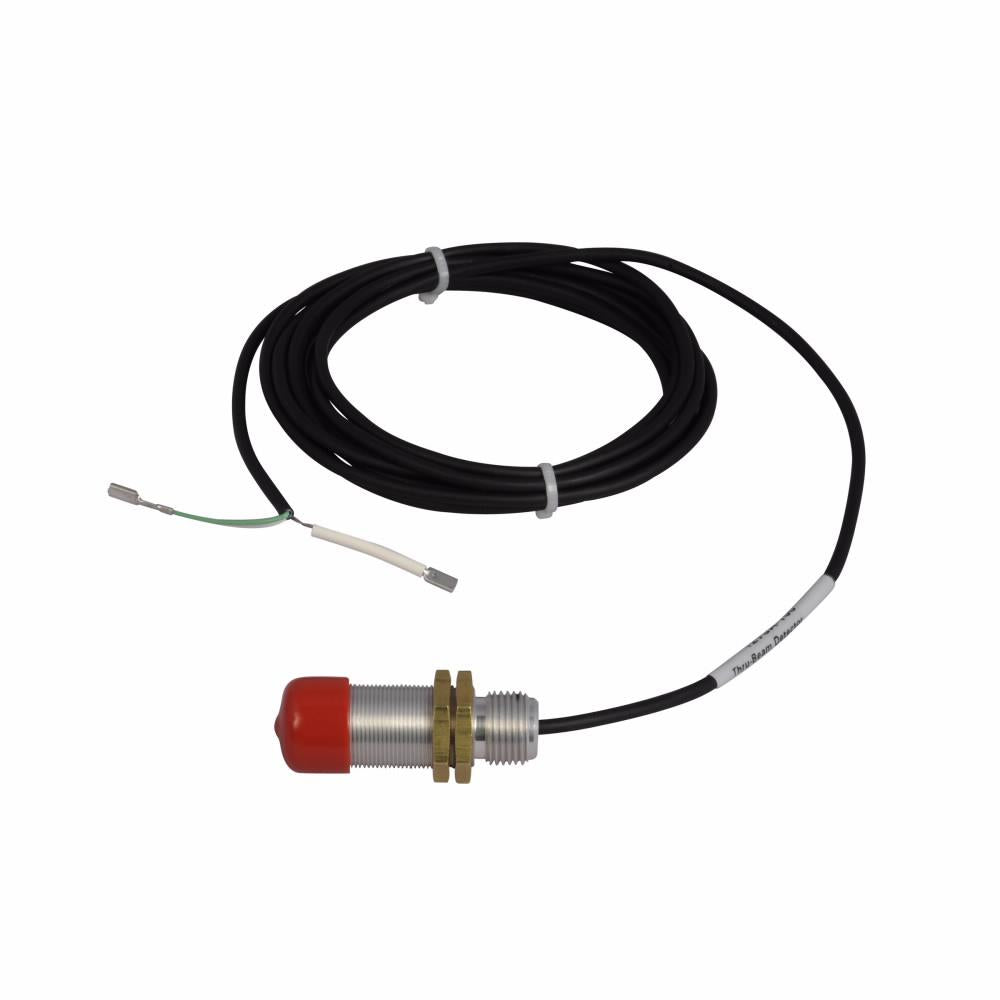

Eaton 1273A-200 Forward Viewing Sensor Head, Photoelectric/Through-Beam Sensor, 9 ft

Product Description

The EATON 1273A-200 sensor head offers a wide choice of sensor heads, control units, output devices, logic modules, and accessories to solve virtually any problem. The sensor head is forward viewing, photoelectric/through-beam sensor with 9 ft sensing and 0.5 to 14 ms response. Sensor heads are connected by cables to the control unit and can be mounted up to 1000 ft away.

• PVC cable type
• Aluminum enclosure
• Narrow Source Beam And Detector Field Of View

Product Highlights

The EATON 1273A-200 sensor head is a forward-viewing photoelectric/through-beam sensor with a 9 ft sensing range and a response time of 0.5 to 14 ms.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1273A-200
• Country of Origin: Mexico

Technical Specifications

• Enclosure Type: NEMA 4/6/13
• Output Type: Light/Dark Operate
• Series: 70 Series
• Temperature Rating: -40 to 176 deg F
• Type: Forward Viewing
• Sensor Type: Photoelectric/Through-Beam
• Sensing Range: 9 ft
• Response Time: 0.5 to 14 ms
• Model: 1273A-200
• Lens Dimension: 1.13" (28.7mm)
• Cable Length: 9 Feet (2.7 Meters)
• Sensor Length: 2.72" (69.1mm)
• Long Range Head Lens: .875" (22mm)
• UNSPSC: 39121528
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Includes: Hardware
• Material: Aluminum
• (Instrument-Sensor) IP Protection: IP65
• (Instrument-Sensor) NEMA Protection: NEMA 6
• (Instrument-Sensor) Type: Through Beam
• Component: Head
• Manufacturer: Eaton
• (Instrument-Sensor) Cable Length: 108 Ft
