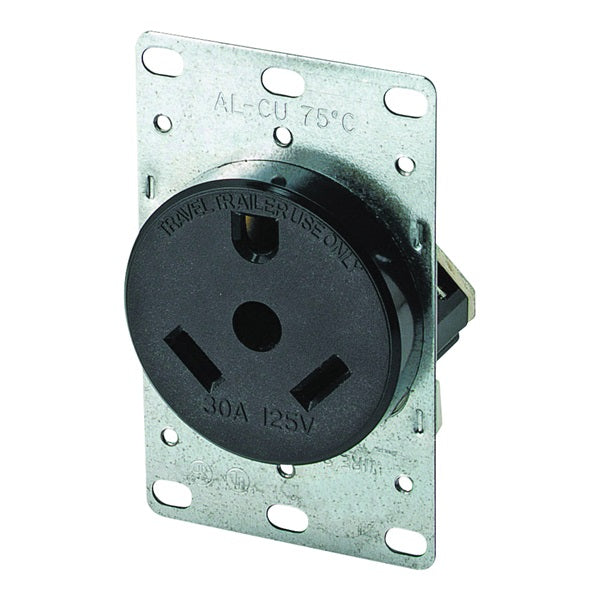

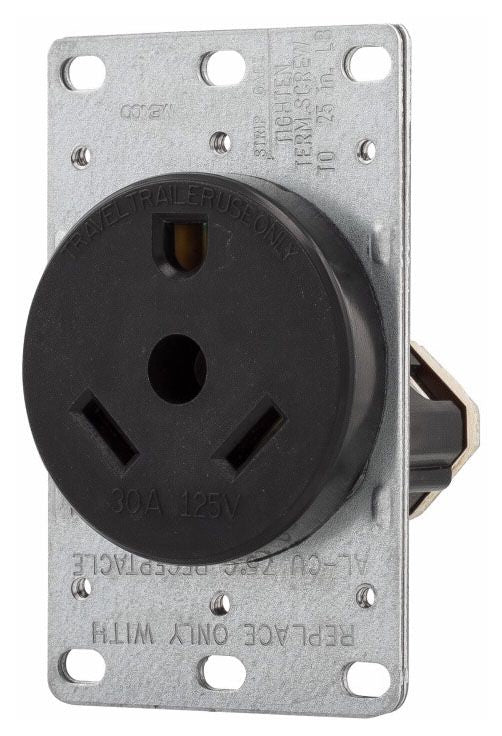

Eaton 1263-BOX Arrow Hart™ Single Straight Blade Receptacle 125 VAC, 30 A

Product Description

The EATON 1263-BOX Arrow Hart™ single straight blade receptacle is designed for commercial power connectivity. Rated at 125 VAC and 30 A, this 2-pole, 3-wire receptacle is ideal for high-amperage industrial applications. It features a heavy-duty design and construction for durability. Suitable for use with the 83 power plug.

• Heavy duty design
• Ideal for high amperage industrial or commercial power connectivity application
• Flush receptacles feature heavy gauge galvanized steel mounting strap and glass-reinforced nylon body

Product Highlights

The EATON 1263-BOX receptacle ensures reliable power connectivity in demanding industrial and commercial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1263-BOX
• Country of Origin: MEX

Technical Specifications

• Amperage: 30 A
• Voltage: 125 VAC
• Poles: 2
• Wires: 3
• Product Name: Eaton power device receptacle
• Catalog Number: 1263-BOX
• UPC: 032664307003
• Product Length/Depth: 3.88 in
• Product Height: 2.25 in
• Product Width: 2.94 in
• Compliances: NAFTA RoHS Compliant
• Certifications: CSA Certified UL Listed
• Product Type: Power device receptacle
• Used with: 83
• Amperage Rating: 30A
• Voltage rating: 125 V
• Wiring method: Back
• Number of wires: 3
• Mounting method: Flush
• Number of poles: Two-pole
• Connection type: Screw
• Style: Power
• Allowable wire size: #12-4 AWG
• NEMA configuration: TT-30R
• Torque rating: 25 lbf-inch
• Design type: Receptacle
• Material: Glass filled nylon
• Receptacle type: Two-pole, three-wire, grounding
• Brand: Eaton
• Configuration: 2-Pole, 3-Wire Grounding
• Rating: 30A-125V, NEMA TT-30R
• Connector Type: Plug In
• Smart Home Compatibility: Not Smart Home Compatible
• Total Power Outlets: 1
• Specification Met: NEMA
• Operating Temperature: -20 to 75 deg C
• Suitable for: 83 Power Plug
• Wire Size: 14 to 10 AWG
• Wiring Type: Side
• Number of Poles: 2
• Number of Wires: 3
• NEMA Configuration: NEMA TT-30R
• Current Rating: 30 A
• Grade: Commercial
• Number Of Poles: 2
• Number Of Wires: 3
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA TT-30R
• Standard & Approvals: CSA C22.2 Certified, RoHS Complaint, UL 498
• Mounting Style: Flush
• Model: 1263-BOX
