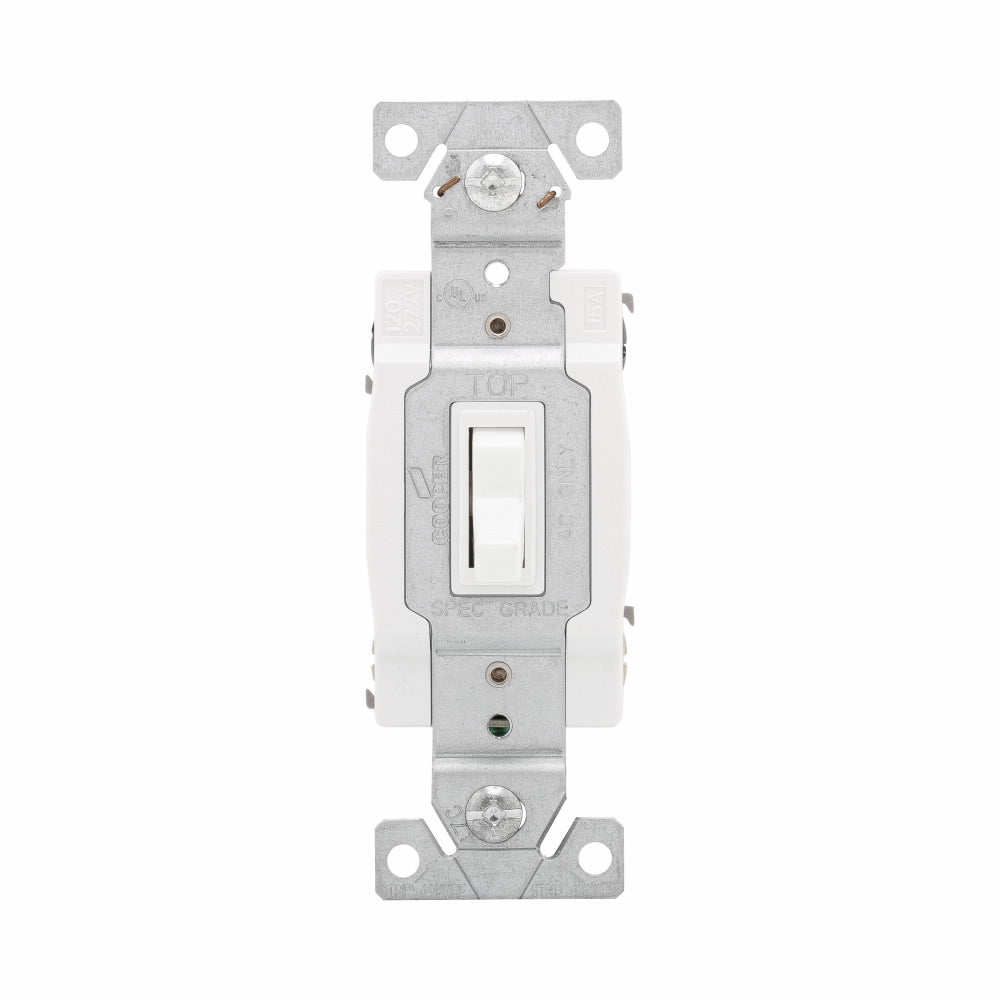

EATON 1242-7W-BOX CWD Switch Toggle 4way 15A 120V GRD WH

Product Description

The EATON 1242-7W-BOX is a 4-way grounding toggle switch designed for both industrial and residential applications. It features a voltage rating of 120 VAC and an amperage rating of 15 A. The switch can handle a power rating from half a horsepower to two horsepower. This toggle switch incorporates a toggle actuator and is mounted on the wall using screw terminals, which simplifies the installation process.

• 4-way toggle switch
• Operating cycles rated at 30,000
• Temperature range from -20 to 60 degrees Celsius

Product Highlights

This toggle switch is equipped with a patented wire stripper, ensuring quick and efficient wire installations. It is made from polycarbonate material for durability and reliability in various environments.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: 1242-7W-BOX

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 15 A
• Application: Industrial and Residential
• Dimensions: 1.31 inches wide x 1.05 inches deep
• Environmental Conditions: -20 to 60 degrees Celsius
• Material: Polycarbonate
• Mounting: Wall
• Number of Poles: 1
• Operating Cycles: 30,000
• Power Rating: 1/2 hp to 2 hp
• Voltage Rating: 120 VAC
• Standards/Approvals: UL 20, CSA Certified, cULus Listed
