EATON 1234-BOX CWD 3W 30A GRD RECEPT

Product Description

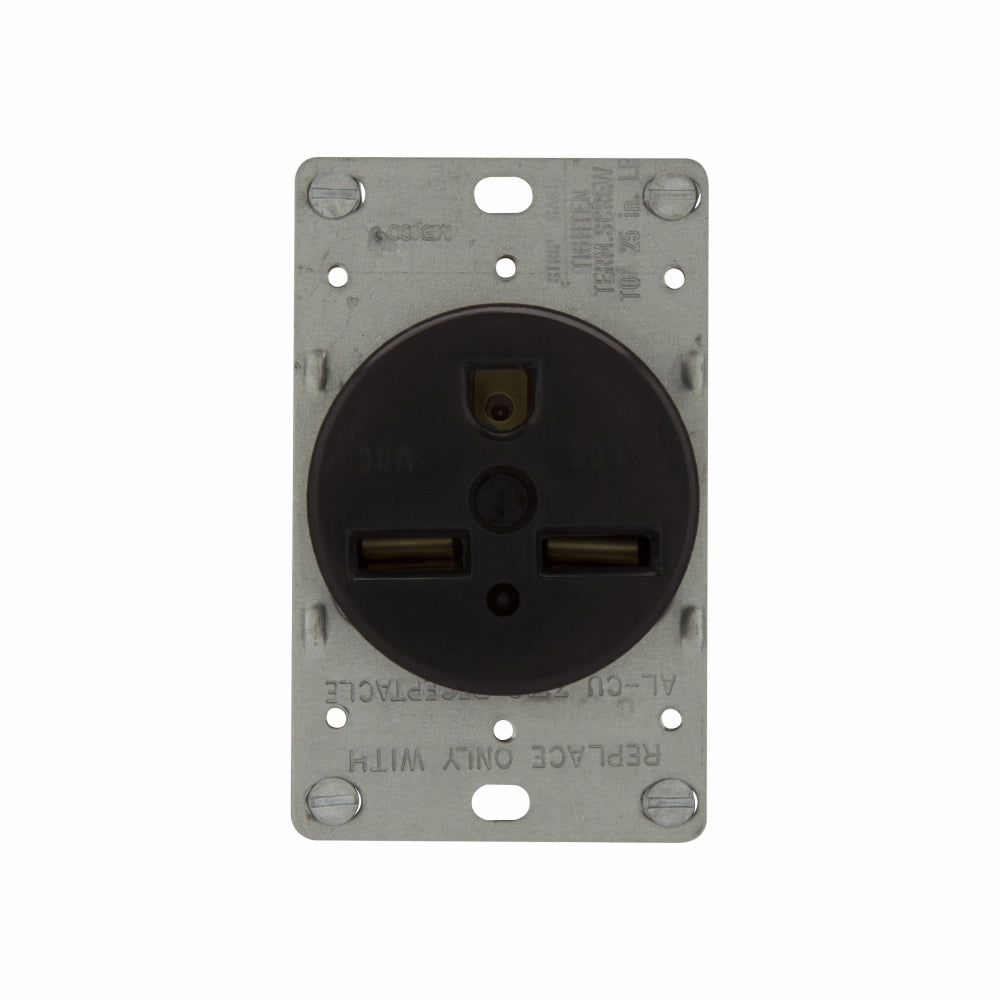

EATON 1234-BOX Single Straight Blade Receptacle is designed for commercial and industrial use with a voltage rating of 250 VAC and an amperage rating of 30 A. This receptacle features a NEMA 6-30R rating and supports two poles with three wires. Constructed from glass reinforced nylon, it can withstand tough conditions.

• Designed for indoor and non-residential applications
• Ideal for high amperage connectivity
• Flush mount with screw terminals for easy installation

Product Highlights

This EATON receptacle is suitable for heavy-duty applications and is equipped with patented lay-in terminals for wire sizes up to 4 AWG.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1234-BOX

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 250 VAC
• NEMA Rating: NEMA 6-30R
• Number of Poles: 2
• Number of Wires: 3
• Material: Glass Reinforced Nylon
• Dimensions: 3.28 in H x 2.5 in W x 1.81 in D
• Standards/Approvals: CSA Certified, NOM 426 Certified, UL 498
• Applications: Indoor and Non-Residential
