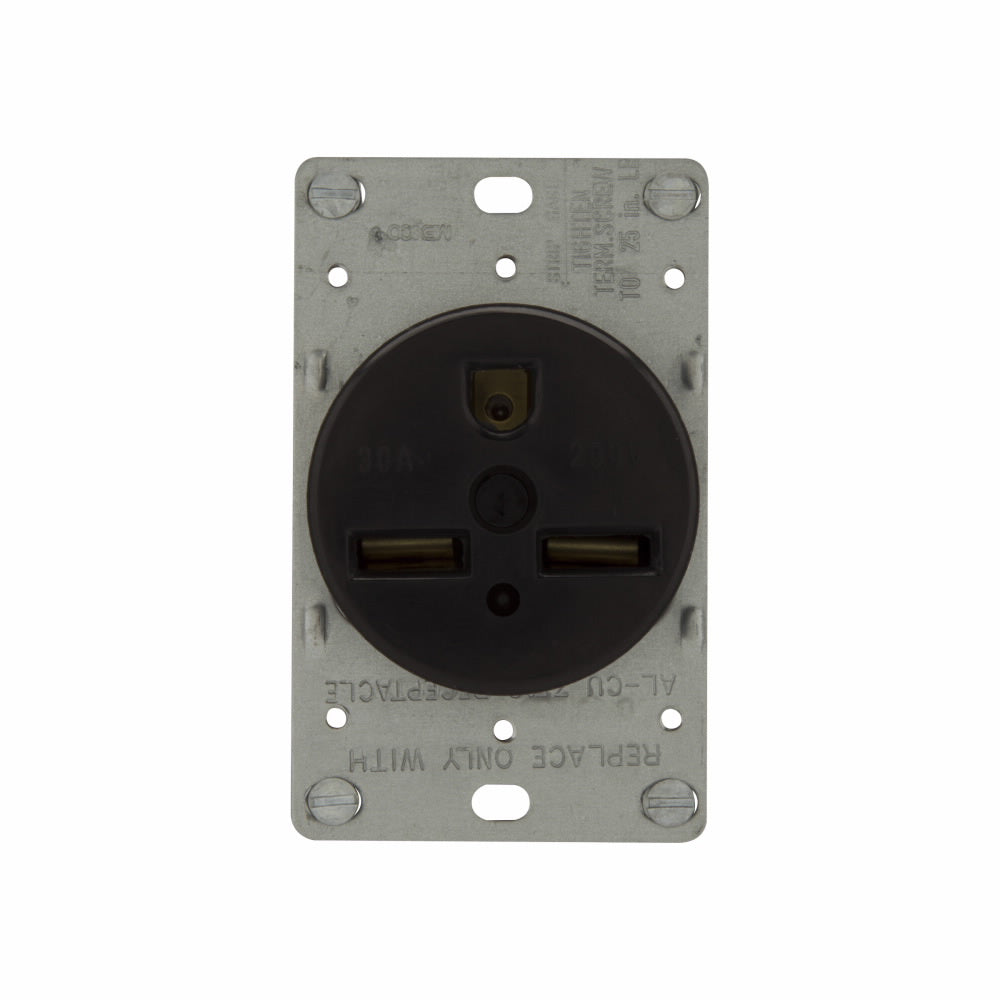

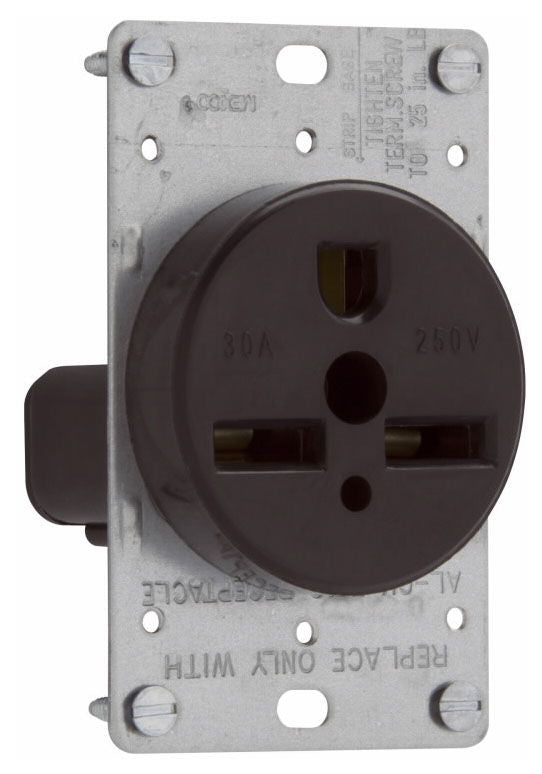

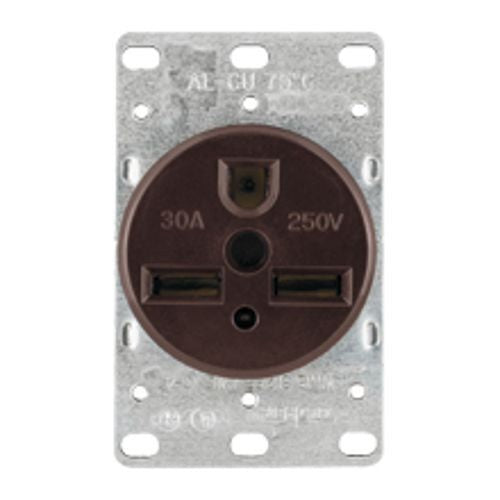

Eaton 1234-BOX Arrow Hart™ Single Straight Blade Receptacle, 250 VAC, 30 A

Product Description

The Eaton 1234-BOX Arrow Hart™ single straight blade receptacle is designed for commercial and industrial power connectivity. Rated at 250 VAC and 30 A, this 2-pole, 3-wire receptacle features a heavy-duty design and durable construction. It is ideal for high-amperage applications and fits one or two gang enclosures, and can be used with aluminum or copper wire.

• Heavy duty design
• Durable construction
• Ideal for high amperage industrial or commercial power connectivity applications

Product Highlights

This receptacle is suitable for industrial and commercial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1234-BOX
• Country of Origin: MEX

Technical Specifications

• Amperage: 30 A
• Voltage: 250 VAC
• Poles: 2
• Wires: 3
• NEMA Configuration: 6-30
• Mounting: Flush Mount
• Application: Heavy Duty, Industrial, Commercial
• Material: Galvanized Steel, Glass Reinforced Nylon
• Wire Type: Aluminum or Copper
• NEMA Rating: NEMA 6-30R
• Grade: Commercial
• Terminal Type: Screw
• Type: Single
• Standards/Approvals: CSA Certified|NOM 426 Certified|UL 498
• Wiring Method: Back
• Wire Size: #12 to 4 AWG
• Operating Temperature: -20 To 75 Deg C
