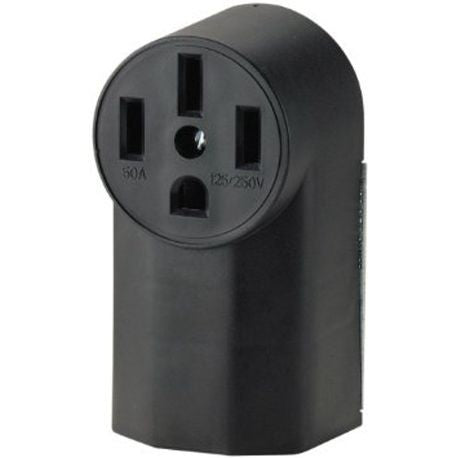

EATON 1212 Eaton Wiring Devices 1212 Single Straight Blade Receptacle 125/250 VAC 50 A 3 Poles 4 Wires

Product Description

The EATON 1212 is a single straight blade receptacle designed for commercial and industrial use. Rated for fifty amps and 125/250 VAC, this receptacle features three poles and four wires, making it suitable for high-amperage applications. It is designed for heavy-duty performance and can be used in a wide range of industrial and commercial power connectivity scenarios.

• Meets NEMA 14-50 specifications
• Constructed with nylon insulation
• Features adjustable cord clamp for installation flexibility

Product Highlights

This receptacle supports surface mounting and offers concentric knockouts for various wiring options. Constructed from high-quality materials, it ensures safety and reliability in demanding environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer: EATON

Technical Specifications

• Number of Poles: 3
• Amperage Rating: 50 A
• NEMA Rating: NEMA 14-50R
• GTIN: 00032664304309
• Grade: Commercial
• Number of Wires: 4
• Temperature Rating: -4 to 158 degrees F
• Voltage Rating: 125/250 VAC
• Material: Polypropylene
• Color: Black
• Terminal Type: Back Wired
• UPC: 032664304309
• UNSPSC: 39121406
• Order Interval: 1
• Minimum Order Qty: 1
• Standard & Approvals: RoHS Compliant
