Eaton 12100A6517 Photo Sensor Tb Det

Product Description

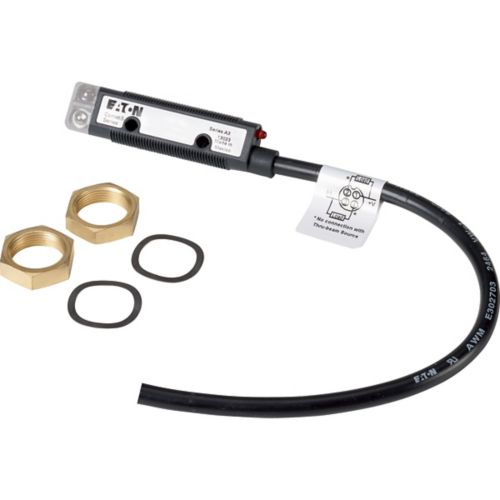

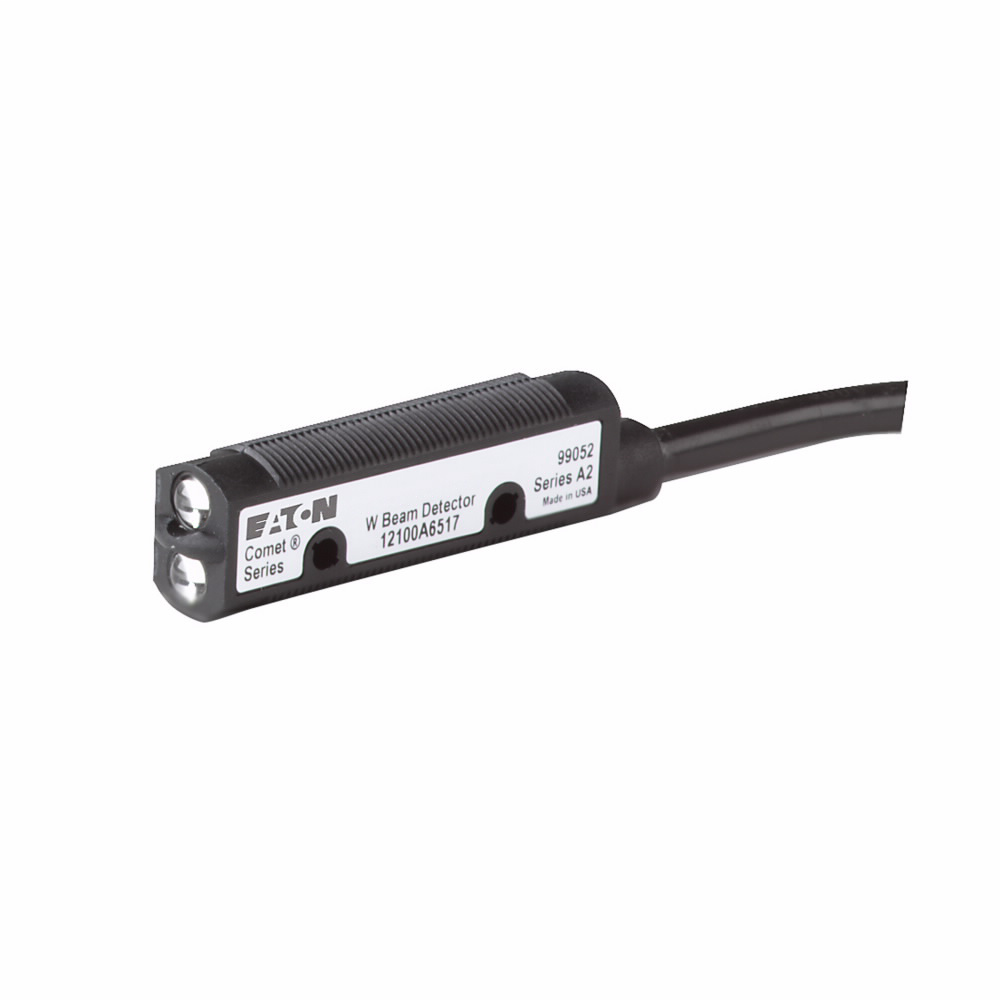

The Eaton 12100A6517 Comet 18mm tubular photoelectric sensor is designed for through-beam detection with forward viewing and output ON. It operates at 10-30 Vdc and features NPN and PNP open collector. Suitable for various applications, including vehicles and food industries.

• Through Beam
• Forward Viewing
• Output ON
• 100 mA PNP
• 250 mA NPN at 10-30 Vdc

Product Highlights

Features include NPN and PNP open collector, 10-30 Vdc, and Polyurethane enclosure material.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 12100A6517
• Country of Origin: United States

Technical Specifications

• GTiN: 00782113821948
• Type: Photoelectric Sensor
• Brand: Eaton - Cutler Hammer
• Height: 0.71 Inch
• Length: 2.2 Inch
• Weight: 0.7 lb
• Product UPC: 78211382194
• 12-Digit UPC: 782113821948
• Applications: Vehicles: On-Road - PickUp & Delivery: Food
• Input Voltage: 10-30 Vdc
• Enclosure Material: Polyurethane
• Contact Configuration: NPN And PNP Open Collector
• Operating Temperature: -20 To 70 degrees C
• Product Name: Eaton Comet 18mm tubular photoelectric sensor
• Catalog Number: 12100A6517
• Product Length/Depth: 55.88 mm
• Product Height: 16.51 mm
• Product Width: 11.938 mm
• Warranty: 3 year
• Certifications: UL Recognized, cUL Recognized
• Product Type: Tubular photoelectric sensor
• Contact Rating: 100 mA PNP, 250 mA NPN at 10-30 Vdc
• Cable type: Polyvinyl Chloride (PVC)
• Enclosure material: Polyurethane foam (RIM)
• Series: Comet
• Sensor type: Through beam
• LED indicator: Output ON
• Protection: Auto reset short circuit
• Cord length: 79.2 ft
• Maximum DC current: 100 mA PNP, 250 mA NPN
• Operating temperature - max: 158 °F
• Operating temperature - min: -4 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
• Alternate Mfr Part Number: 12100A6517
• Manufacturer Part Number: 12100A6517
• Numeric ID: 3882615
• Sensing Mode: Through Beam
• Special Features: Forward Viewing
• Supply Voltage: 10-30 VDC
• MPN: 12100A6517
• UPC: Does not apply
• Country of Origin: China
• Condition: New – Open box
• EAN: 4015081323609
• Product Weight: 0.225 kg
• Model Code: 12100A6517
• Electric connection type: Cable
• Enclosure type: Cylinder, screw-thread
• Operating mode: Switching principle: Adjustable bright/dark switching
• Explosion safety category for dust: None
• Explosion safety category for gas: None
• Functions: Short-circuit protection Protection against polarity reversal Thru-light beam Detector (for combination with source)
• Voltage type: DC
• Wire size: 0
• Connection type: 2 m connection cable 4-wire
• Cable sheath material: Polyurethane (PUR)
• Light type: Polarity free red light
• Degree of protection: NEMA 4 IP67
• Interface type: Other
• Switch function type: Other
• Load current: Max. 250 mA (Ie, NPN, 120 > 50°C) Max. 100 mA (Ie, PNP)
• Laser protection class: None
• Operation agent-safety class: Safety class 2
• Shock resistance: 100 g, Mechanical, Shock duration 3 ms
• Optical surface material: Plastic
• Output current (mA) - max: 30 mA
• Rated control supply voltage (Us) at DC - max: 30 V
• Rated control supply voltage (Us) at DC - min: 10 V
• Rated switching distance (Sn): 6000 mm
• Sensor length: 56 mm
• Switching distance - max: 6000 mm
• Voltage rating - max: 30 V
• Safety type (IEC 61496-1): 1
• Switching frequency: 142 Hz
• Sensing mode: Light-/dark switching
• Switching output type: PNP
• Sensor material: Insulated material
• Product category: Comet Series
• Response time: 7 ms
• Ambient operating temperature - max: 70 °C
• Ambient operating temperature - min: -20 °C
• Diameter sensor: 18 mm
• Number of contact energized outputs with signalling function: 0
• Number of outputs (protected contact energized): 0
• Number of outputs (protected semiconductor): 0
• Number of outputs (semiconductor with signaling function): 0
• Operational current (Ib) in the switched state at 24 V DC: 30 A
• Adjustment type: Manual adjustment
