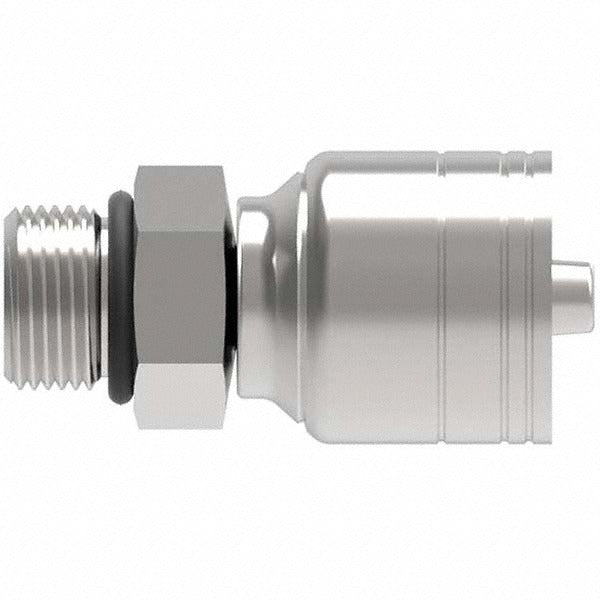

Eaton 10Z-P12-BG Hydraulic Hose Orb Fitting 10mm

Product Description

The EATON 10Z-P12-BG is a male straight thread O-ring boss (ORB) hydraulic hose fitting designed for high-pressure fluid connections in hydraulic systems. Machined from steel, this fitting uses a straight thread with an O-ring seal at the port to eliminate leak paths at the connection point. The 1-1/16-12 thread size pairs with a 10 mm hose and accepts a 1-1/4 inch hex for wrench engagement. It is installed by hydraulic technicians and equipment mechanics on mobile and industrial hydraulic circuits where a reliable, leak-free port connection is required.

This fitting is suited for use in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic power units. The ORB straight thread configuration is common in systems where JIC flare fittings have been replaced with O-ring face or port seals to improve sealing performance. It is appropriate for both new assembly and field replacement of worn or damaged hose end fittings on hydraulic lines requiring a 10 mm hose ID connection.

Key Features

• Male straight thread O-ring boss (ORB) design provides positive port sealing without relying on flare or pipe thread deformation
• Steel construction for durability under high-pressure hydraulic service
• 1-1/16-12 thread size for compatibility with standard SAE straight thread O-ring ports
• 10 mm hose size for correct hose-end fitment
• 1-1/4 inch hex allows standard wrench installation and removal
• Single-piece fitting — sold individually (package quantity of 1)

Compatibility

Designed as an OEM-style replacement or new-assembly hydraulic hose end fitting for hydraulic systems using SAE straight thread O-ring boss ports with a 1-1/16-12 thread and 10 mm hose connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or equipment mechanic. Depressurize and bleed the hydraulic system completely before removing or installing any fitting. Inspect the O-ring for damage before assembly and lubricate it lightly with clean hydraulic fluid prior to threading into the port. Tighten the fitting using the appropriate hex wrench and follow the equipment manufacturer's recommended assembly procedures for straight thread O-ring fittings.
