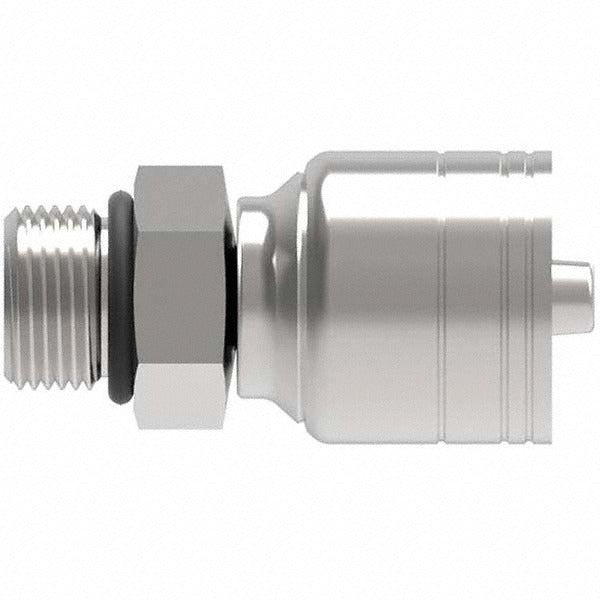

Eaton 10Z-P10-BG Hydraulic Hose Orb Fitting 7/8-14

Product Description

The EATON 10Z-P10-BG is a male straight thread O-ring boss (ORB) hydraulic hose fitting designed for use in high-pressure hydraulic systems. Machined from steel, this fitting accepts a 10 mm hose size with a 7/8-14 thread size and a 7/8-inch hose diameter. The O-ring face seal design provides a leak-resistant connection by compressing the O-ring against a flat seating surface rather than relying on thread sealant alone. Licensed hydraulic technicians, mobile equipment mechanics, and industrial maintenance techs install this fitting type when building or repairing hydraulic hose assemblies on equipment where thread integrity and fluid containment are critical.

This fitting is suited for residential, commercial, and industrial hydraulic applications including mobile equipment, agricultural machinery, construction equipment, and stationary hydraulic power units. It is used wherever a male ORB straight thread connection is required at the hose end of an assembly. The 1-inch hex size allows for standard wrench installation and proper torque engagement during assembly. Sold individually, it is a direct replacement or build component in hydraulic hose routing and repair work.

Key Features

• Male straight thread O-ring boss (ORB) design for leak-resistant hydraulic connections
• Steel construction for durability in high-pressure hydraulic service
• 7/8-14 thread size compatible with standard ORB port fittings
• 10 mm hose size with 7/8-inch hose diameter
• 1-inch hex for standard wrench installation
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as an OEM-style replacement or new-build component for hydraulic hose assemblies requiring a male straight thread O-ring boss fitting with a 7/8-14 thread and 10 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with hydraulic system service. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Inspect the O-ring for damage before assembly and replace it if worn or cracked. Follow equipment manufacturer torque guidelines and applicable industry standards for hydraulic fitting assembly.
