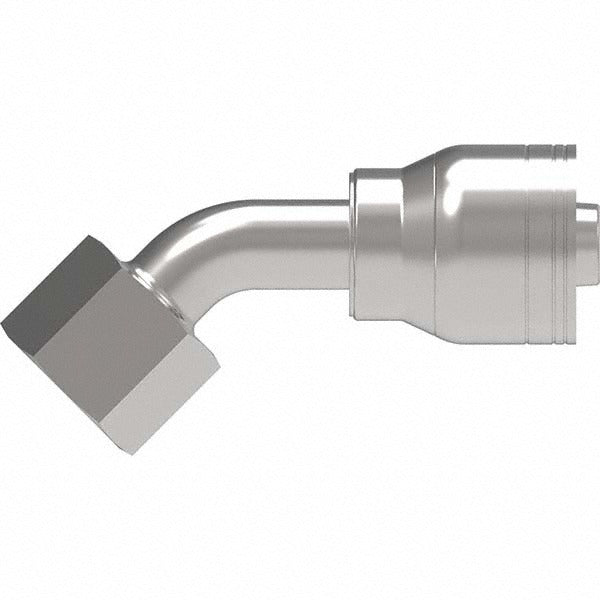

Eaton 10Z-L70-BG Female Ors Swivel 45 Elbow 10mm 1-14

Product Description

The EATON 10Z-L70-BG is a female ORS swivel 45-degree elbow fitting designed for hydraulic hose assemblies. Machined from steel, this fitting connects a hose end to a port at a 45-degree angle, reducing stress on the hose line and allowing routing in tight spaces. The ORS (O-Ring Seal) swivel design provides a leak-resistant connection by compressing an O-ring against a flat-face port seat. The fitting carries a 1-14 thread size and accommodates a 10 mm hose size with a 1-inch hose diameter. A 1-1/8-inch hex provides a reliable wrench flat for installation torque. Hydraulic system technicians and mobile equipment mechanics install this type of fitting during hose assembly fabrication and field repair work.

This fitting is suited for hydraulic plumbing applications on mobile equipment, industrial machinery, and agricultural equipment where angled hose routing is required. The swivel feature allows final hose positioning after the fitting body is threaded into the port, minimizing hose twist during assembly. The FOR-SEAL shaft type indicates compatibility with face-seal port configurations commonly found on OEM hydraulic manifolds and valve bodies. It is sold individually and is intended as a replacement or new-assembly component.

Key Features

• Female ORS swivel design with O-ring face seal for leak-resistant hydraulic connections
• 45-degree elbow angle allows angled hose routing and reduces line stress in confined spaces
• Steel construction for durability under hydraulic system pressures
• FOR-SEAL shaft type compatible with flat-face ORS port configurations
• 1-1/8-inch hex flat for standard wrench installation
• Swivel end allows hose positioning after port fitting is seated, reducing hose twist

Compatibility

Designed as an OEM-style replacement or new-assembly hydraulic hose fitting for systems using female ORS swivel 45-degree elbow connections with a 1-14 thread size and 10 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring for damage before assembly and ensure the mating port face-seal surface is clean and free of nicks or debris. Refer to the equipment manufacturer's service documentation and applicable industry standards for proper assembly procedures.
