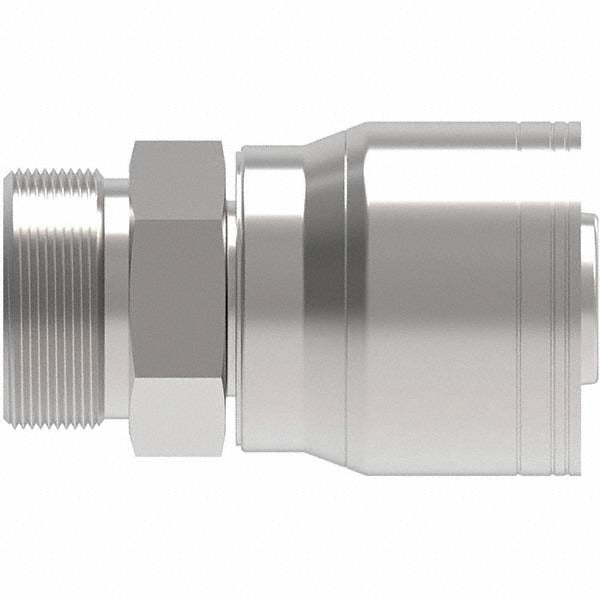

Eaton 10Z-E70-BG Hydraulic Hose Male Rigid Fitting

Product Description

The EATON 10Z-E70-BG is a male rigid hydraulic hose fitting designed for high-pressure hydraulic plumbing applications. Built from steel with a FOR-SEAL shaft type, this fitting accepts a 10 mm hose size and connects via a 1-14 thread. It measures 2.59 inches in length with a 1.39-inch height and width, and weighs 0.35 pounds. Hydraulic system technicians and fluid power specialists install this type of fitting when assembling or repairing hydraulic lines in mobile equipment, industrial machinery, and power units. The rigid male design provides a fixed, non-swivel connection point for routed hose assemblies.

This fitting is suited for hydraulic hose assemblies requiring a male rigid end connection with a 1-inch hose diameter and 1-14 thread specification. It is appropriate for both OEM assembly and field repair scenarios on systems where a secure, non-articulating connection is specified. The FOR-SEAL shaft type is designed to work with compatible seal configurations in hydraulic circuits. The 1-1/16-inch hex size allows for standard wrench installation in confined plumbing runs typical of mobile or stationary hydraulic systems.

Key Features

• Male rigid fitting with FOR-SEAL shaft type for secure, non-swivel hydraulic connections
• 10 mm hose size with 1-inch hose diameter compatibility
• 1-14 thread size for precise threaded engagement
• Steel construction for durability in high-pressure hydraulic service
• 1-1/16-inch hex size compatible with standard wrench tooling
• Compact form factor: 2.59 inches length, 1.39 inches height and width

Compatibility

Designed as an OEM-style replacement rigid male fitting for hydraulic hose assemblies requiring a 10 mm hose size, 1-14 thread, and FOR-SEAL shaft type configuration.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect mating surfaces and threads for damage before assembly, and apply appropriate thread sealant or sealing method as specified by the system manufacturer. Torque to system manufacturer specifications using a wrench on the 1-1/16-inch hex.
