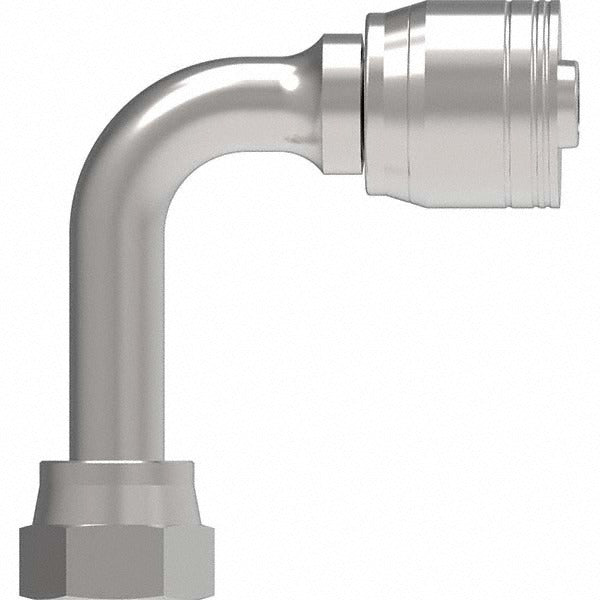

Eaton 10Z-A70-BG Female Ors Swivel 90 Elbow Hydraulic Fitting

Product Description

The EATON 10Z-A70-BG is a female ORS swivel long drop 90-degree elbow fitting designed for use in hydraulic hose assemblies. Constructed from steel, this fitting connects a hose end to a port at a 90-degree angle, which helps route hoses in tight or congested plumbing layouts while maintaining a secure, leak-resistant seal. The swivel design allows for rotational adjustment during installation without twisting the hose. It carries a 1-14 thread size and accommodates a 1-inch hose diameter, making it suitable for medium-to-high pressure hydraulic circuits where directional routing and reliable sealing are critical. Installation is typically performed by hydraulic system technicians and industrial maintenance professionals.

This fitting is intended for hydraulic hose assembly applications in industrial, mobile, and heavy-equipment environments. The long drop configuration provides additional clearance when routing hoses away from ports in areas with limited space. The FOR-SEAL shaft type ensures a proper sealing interface at the port connection. A 1-1/8-inch hex size allows for standard wrench installation. This part ships as a single unit and is suited for replacement or new-build hydraulic circuit work where a 90-degree female ORS swivel connection is required.

Key Features

• Female ORS swivel interface with long drop 90-degree elbow configuration for directional hose routing
• Steel construction for durability in hydraulic system environments
• 1-14 thread size for proper port engagement and sealing
• 1-inch hose diameter compatibility for medium-to-high pressure hose assemblies
• FOR-SEAL shaft type ensures leak-resistant port connection
• 1-1/8-inch hex size for straightforward wrench installation

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a female ORS swivel long drop 90-degree elbow with a 1-14 thread size and 1-inch hose diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic system fully before removing or installing any fittings to prevent fluid injection injuries. Use a proper wrench on the 1-1/8-inch hex and do not over-tighten, as thread or seal damage can result. Verify thread type and hose size compatibility before assembly to ensure a correct, leak-free connection.
