Eaton 10Z-A32-BG Female Ors Swivel 90 Elbow Hose Fitting

Product Description

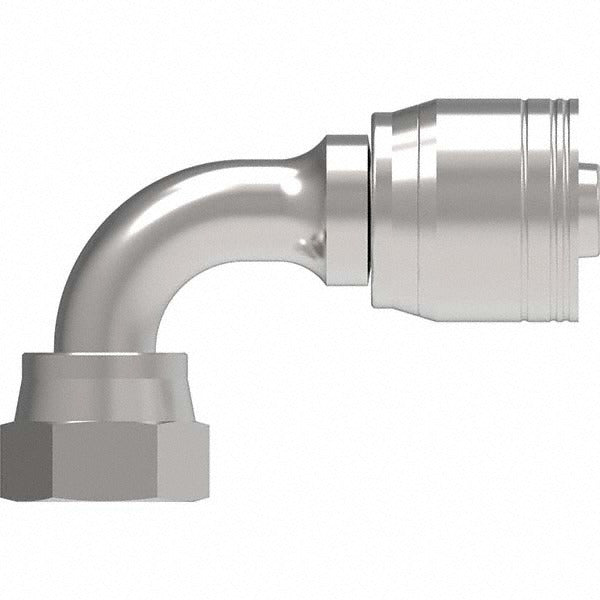

The EATON 10Z-A32-BG is a female ORS swivel short drop 90-degree elbow hydraulic hose fitting manufactured from steel. This fitting connects hydraulic hose assemblies at a 90-degree angle, allowing hose routing in tight or confined spaces without sharp bends that can damage hose or restrict flow. The swivel design allows the fitting body to rotate during assembly, reducing hose twist. It accepts a 10mm hose size with a 1-3/16-12 thread size and features a FOR-SEAL shaft type for reliable sealing under pressure. It is installed by hydraulic system technicians working on mobile equipment, industrial machinery, and fluid power systems.

This fitting is suited for hydraulic systems requiring a compact 90-degree hose end connection where routing space is limited. The short drop elbow profile reduces the overall installed length compared to a standard 90-degree elbow, making it well suited to equipment with tight clearances. The female ORS swivel configuration is commonly found on mobile hydraulic equipment including agricultural machinery, construction equipment, and industrial hydraulic power units requiring dependable hose-to-port connections.

Key Features

• Female ORS swivel end allows rotation during assembly to prevent hose twist
• Short drop 90-degree elbow profile for routing in confined spaces
• 10mm hose size with 1-3/16-12 thread for correct port engagement
• FOR-SEAL shaft type provides consistent sealing at the fitting interface
• Steel construction for durability in high-pressure hydraulic applications
• 1-3/8 inch hex size for standard wrench tightening

Compatibility

Designed for use with 10mm hydraulic hose assemblies requiring a female ORS swivel short drop 90-degree elbow end with a 1-3/16-12 thread size. Consult the system schematic and hose manufacturer specifications to confirm fitting compatibility before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system fully before removing or installing any fittings. Use the 1-3/8 inch hex on the fitting body to torque to the equipment or hose manufacturer's specifications for the thread size. Inspect the ORS sealing surface and mating port for nicks or contamination before assembly, as surface damage will cause leaks under pressure.
