Eaton 10Z-A30-BG Hydraulic Hose Fitting Female Ors Swivel 90 Elbow

Product Description

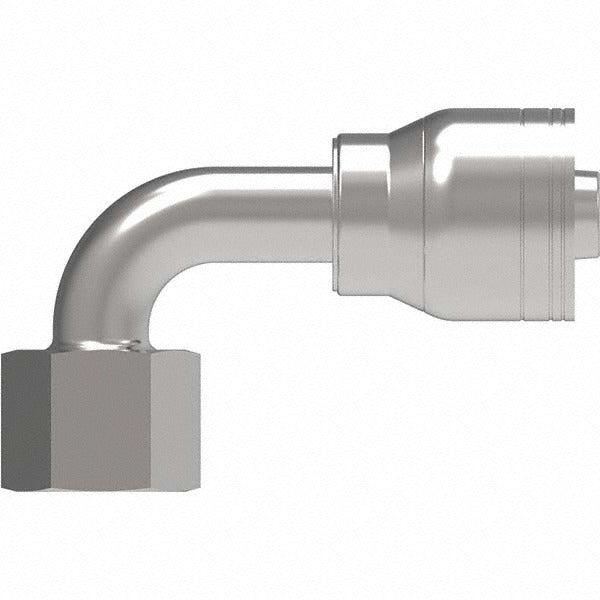

The EATON 10Z-A30-BG is a female ORS swivel short drop 90-degree elbow fitting designed for hydraulic hose assemblies. Manufactured from steel, this fitting connects a 10 mm hose to a 1-14 straight thread port using an O-ring face seal (ORS) interface that eliminates leak paths common with tapered thread designs. The swivel design allows the hose to be positioned without twisting during final assembly. A 1-1/8 inch hex provides a standard wrench engagement surface. This fitting is installed by hydraulic system technicians and mechanics working on mobile equipment, industrial machinery, and related fluid power applications.

This elbow fitting is suited for hydraulic plumbing in tight routing situations where a straight fitting would create excessive hose bend or interference. The short drop 90-degree geometry minimizes the installed footprint while maintaining flow path efficiency. It is appropriate for use in hydraulic circuits on mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic systems where a 10 mm hose terminates at a 1-14 threaded port. Always verify system pressure rating and fluid compatibility before installation.

Key Features

• Female ORS (O-ring face seal) interface provides a leak-resistant metal-to-metal sealing surface backed by an O-ring
• Swivel design allows hose orientation adjustment without transmitting torque to the hose assembly
• Short drop 90-degree elbow geometry suits tight routing and close-clearance installations
• Steel construction for durability in high-pressure hydraulic service
• 1-1/8 inch hex size for standard wrench engagement during installation and removal
• FOR-SEAL shaft type ensures correct O-ring seating at the port face

Compatibility

Designed as an OEM-style replacement hydraulic hose elbow fitting for systems using 10 mm hose with a 1-14 straight thread ORS port connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the O-ring and sealing face for damage prior to assembly and replace the O-ring if any deformation or cuts are present. Torque the fitting to the hydraulic system specification for the thread size and consult applicable fluid power standards for proper assembly procedure.
