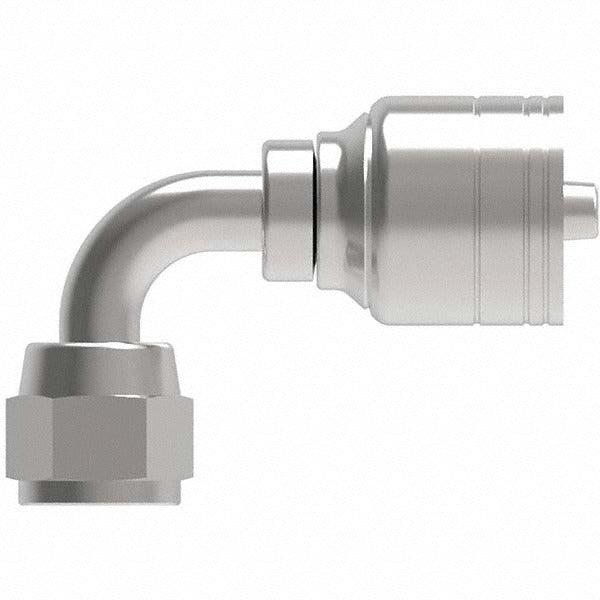

Eaton 10Z-672-BG Jic 37 Female Swivel 90 Elbow 10mm

Product Description

The EATON 10Z-672-BG is a steel hydraulic hose fitting configured as a JIC 37-degree female swivel 90-degree elbow. It connects a 10 mm hose to a 1-1/16-12 threaded port, routing hydraulic lines at a right angle to reduce stress on hoses and fittings in tight installations. The swivel design allows the fitting to rotate during assembly, making it easier to achieve proper alignment without twisting the hose. Built from steel, this fitting is suited for high-pressure hydraulic systems found in industrial machinery, mobile equipment, and hydraulic power units. Installation is typically performed by hydraulic system technicians and heavy equipment mechanics.

This fitting is used in hydraulic systems that require a 90-degree directional change at the hose termination point. It is well suited for mobile hydraulic equipment, agricultural machinery, construction equipment, and industrial hydraulic circuits where space constraints require an angled connection. The 1-1/16-12 thread size is a common straight-thread or JIC port size found on hydraulic cylinders, valves, and manifolds. The JIC 37-degree flare interface provides a reliable metal-to-metal seal at the connection point.

Key Features

• JIC 37-degree female swivel interface for a metal-to-metal flare seal
• 90-degree elbow configuration for right-angle hose routing in confined spaces
• Swivel body allows rotational adjustment during assembly to prevent hose twist
• 1-1/16-12 thread size fits common hydraulic valve, cylinder, and manifold ports
• Steel construction for durability in high-pressure hydraulic service
• 1-1/4 inch hex size for standard wrench installation

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for systems using 10 mm hose with a 1-1/16-12 JIC 37-degree female swivel 90-degree elbow connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed down the hydraulic system completely before removing or installing any fittings. Inspect the mating port and flare seat for damage or debris before assembly. Tighten to the fitting manufacturer and system designer specifications using a wrench on the hex flats — do not use the hose or swivel body as a torque point.
