Eaton 10Z-670-BG Female Jic Swivel 90 Elbow 7/8-14

Product Description

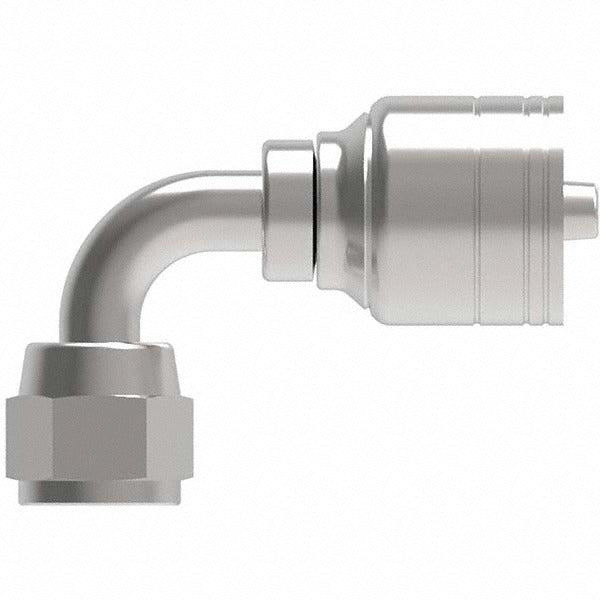

The EATON 10Z-670-BG is a female JIC swivel 90-degree elbow hydraulic hose fitting machined from steel. It connects a 10 mm hydraulic hose to a 7/8-14 threaded port using a JIC 37-degree flare seat for a leak-resistant metal-to-metal seal. The swivel design allows the hose to be oriented without twisting during assembly, reducing installation stress on the hose assembly. This fitting is used by hydraulic technicians and equipment mechanics working on mobile and industrial hydraulic systems where a 90-degree directional change at the hose termination is required.

This fitting is suited for hydraulic plumbing applications where space constraints or routing geometry calls for a right-angle connection at the hose end. Common install scenarios include mobile equipment such as skid steers, excavators, agricultural machinery, and industrial hydraulic power units. The 7/8-14 thread size and JIC 37-degree flare interface are standard across a wide range of OEM and aftermarket hydraulic circuits. The 1-inch hex flat allows for standard wrench engagement during tightening.

Key Features

• Female JIC 37-degree flare swivel seat provides a reliable metal-to-metal seal
• 90-degree elbow configuration routes hose away from port in tight spaces
• Swivel body allows hose orientation adjustment without inducing twist
• 7/8-14 thread size matches standard JIC hydraulic port fittings
• Steel construction for durability in high-pressure hydraulic service
• 1-inch hex for standard wrench access during installation

Compatibility

Designed as an OEM-style replacement JIC hydraulic hose fitting for systems using 10 mm hose with 7/8-14 female JIC swivel 90-degree elbow terminations in mobile or industrial hydraulic circuits.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fitting. Clean all threads and sealing surfaces before assembly, and inspect the JIC flare seat for damage prior to torquing. Follow equipment manufacturer specifications and applicable hydraulic system service standards for final torque values.
