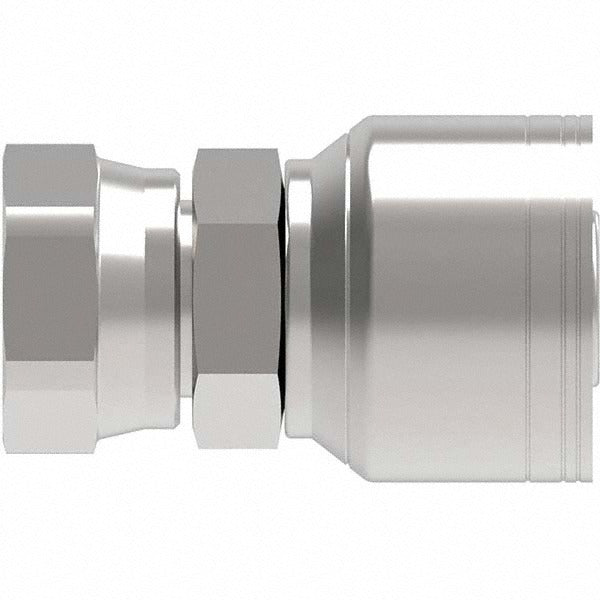

Eaton 10Z-612-BG Female Jic 37 Swivel Fitting 10mm

Product Description

The EATON 10Z-612-BG is a female JIC 37-degree swivel hose fitting designed for hydraulic fluid conveyance applications. Constructed from steel, this fitting accommodates a 10 mm hose size and uses a 1-1/16-12 thread size. The swivel design allows the hose to be positioned and tightened without twisting the hose body, reducing installation stress and the risk of line fatigue. Hydraulic technicians and fluid power specialists install this type of fitting when assembling or repairing high-pressure hydraulic hose assemblies on mobile equipment, industrial machinery, and related systems.

This fitting is suited for use in hydraulic systems requiring a JIC 37-degree flare connection standard. The female swivel end mates to a male JIC 37-degree flare port or adapter. It is commonly used during hose assembly fabrication or in the field when replacing worn or damaged end fittings on existing hydraulic lines. Applications span construction equipment, agricultural machinery, and general industrial hydraulic circuits where steel fittings and JIC-standard connections are specified.

Key Features

• Female JIC 37-degree swivel design allows hose positioning without line twist during installation
• Steel construction for durability in hydraulic service environments
• 10 mm hose size with 1-1/16-12 thread for precise fitment to JIC-standard ports
• 1-1/16 inch hose diameter compatible with standard hydraulic hose assemblies
• Single-piece per package — suitable for individual replacement or assembly work

Compatibility

Designed as a JIC 37-degree swivel hose fitting replacement for hydraulic systems requiring a 10 mm hose size and 1-1/16-12 female thread connection on steel-compatible assemblies.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Use appropriate flare seat and thread inspection practices to confirm mating surfaces are clean and undamaged before torquing. Follow equipment manufacturer specifications and applicable fluid power standards for final assembly torque values.
