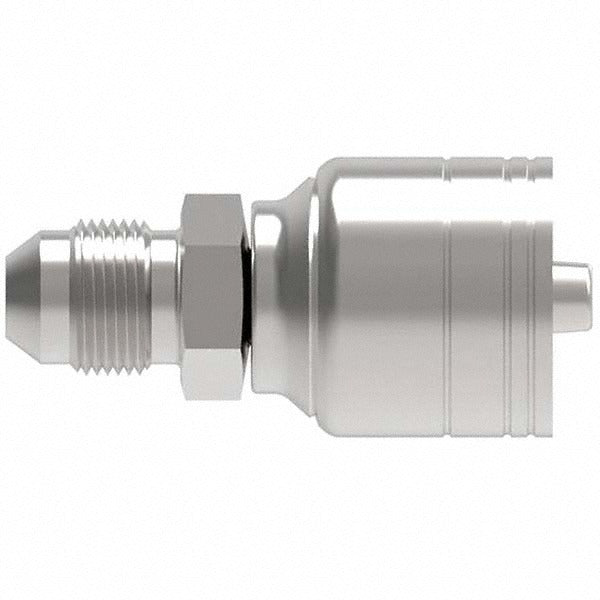

Eaton 10Z-512-BG Jic 37 Male Rigid Hose Fitting 10 Mm

Product Description

The EATON 10Z-512-BG is a JIC 37-degree male rigid hose fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. Machined from steel for durability in demanding industrial and mobile hydraulic applications, this fitting accepts a 10 mm hose size and uses a 1-1/16-12 UN thread for a secure, leak-resistant connection. The JIC 37-degree flare seating surface creates a metal-to-metal seal that resists vibration loosening and maintains integrity under pressure cycling. Licensed hydraulic technicians and fluid power specialists install this type of fitting when assembling or repairing hose lines on equipment where precise, repeatable connections are required.

This fitting is suited for use in mobile equipment, industrial machinery, and stationary hydraulic power units. It connects hydraulic hose to components such as valves, cylinders, pumps, and manifolds. The 1-1/16-12 thread size is commonly found in mid-to-large hose assemblies where flow capacity and pressure ratings demand a robust connection. The rigid male configuration makes it appropriate for applications where hose routing is fixed and a non-swivel termination is preferred.

Key Features

• JIC 37-degree flare seating provides metal-to-metal seal for leak resistance under pressure
• Steel construction for strength and durability in hydraulic service
• 1-1/16-12 UN thread size suits mid-to-large hydraulic hose assemblies
• Rigid male configuration for fixed hose routing applications
• 1-1/8 inch hex size allows standard wrench installation
• Accepts 10 mm hose size for compatibility with common hydraulic hose lines

Compatibility

Designed as an OEM-style replacement rigid JIC 37-degree male fitting for hydraulic hose assemblies using 10 mm hose with a 1-1/16-12 UN thread end connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any hose fitting. Clean all mating surfaces and inspect threads for damage before assembly. Tighten fittings to the appropriate flat-from-finger-tight torque per the system manufacturer's specifications and applicable fluid power standards such as SAE J514.
