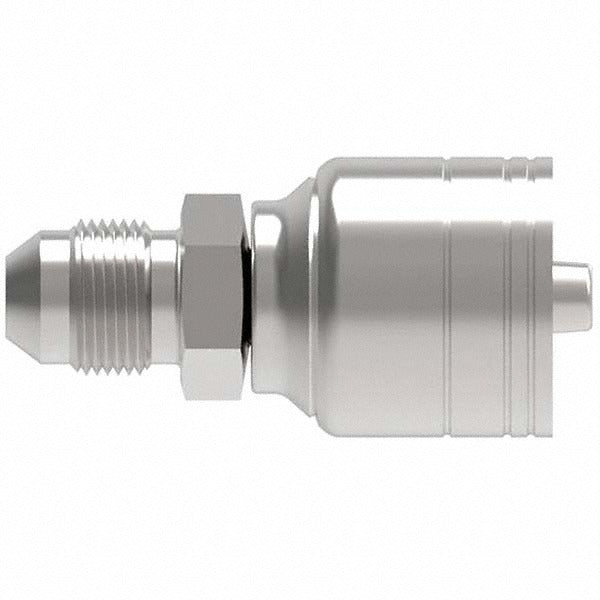

Eaton 10Z-508-BG Straight Jic 37 Male Rigid Hydraulic Fitting

Product Description

The EATON 10Z-508-BG is a straight JIC 37-degree male rigid hose fitting designed for hydraulic fluid line assemblies. Machined from steel, this end fitting connects a 10 mm hydraulic hose to a 3/4-16 UNF male JIC thread. The 37-degree flare seat creates a metal-to-metal seal that resists vibration loosening and high-pressure blowout common in mobile and industrial hydraulic circuits. The rigid, straight configuration maintains a direct inline path between the hose end and the port, simplifying routing in tight-clearance applications. Hydraulic technicians and fluid-power specialists install this fitting during hose assembly or field repair of hydraulic lines.

This fitting is suited for use in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic systems where JIC 37-degree flare connections are the standard. It is assembled onto a compatible 10 mm hydraulic hose using the appropriate swage or field-attachable hose-end tooling, then threaded into any JIC 37-degree male port. The 15/16-inch hex allows use of standard combination or open-end wrenches during installation and removal.

Key Features

• Straight rigid configuration for direct inline hose-to-port connections
• JIC 37-degree flare seat provides a reliable metal-to-metal hydraulic seal
• Steel construction for durability in high-pressure hydraulic service
• 3/4-16 UNF thread size compatible with standard JIC 37-degree male ports
• 10 mm hose size with 3/4-inch hose diameter designation
• 15/16-inch hex for secure wrench engagement during assembly

Compatibility

Designed for use with 10 mm hydraulic hose assemblies requiring a straight JIC 37-degree male rigid end fitting with a 3/4-16 UNF thread connection.

Installation Notes

This fitting is installed by qualified hydraulic technicians or fluid-power specialists. Always depressurize and bleed down the hydraulic system before disconnecting or replacing any hose or fitting. Use the correct swage tooling or field-attachable installation equipment rated for the hose and fitting series. Torque the JIC fitting to the hydraulic system manufacturer's port specification using the hex flats provided; do not over-tighten, as JIC flare seats are metal-to-metal and do not require thread sealant.
