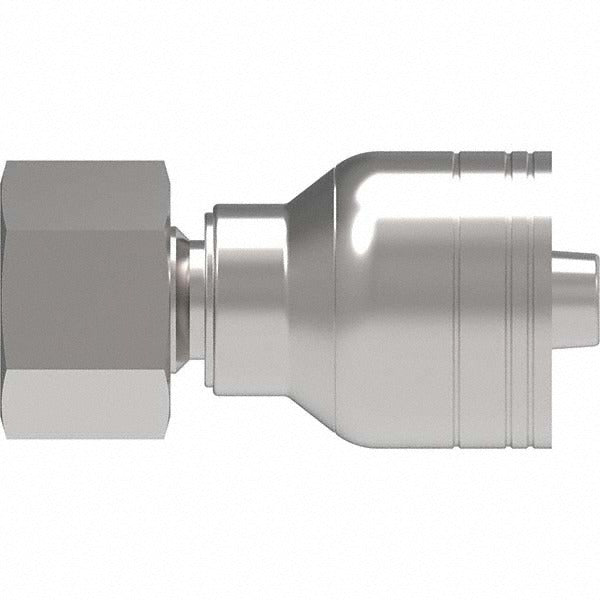

Eaton 10Z-18C-BG Hydraulic Hose Female Swivel Fitting 10mm

Product Description

The EATON 10Z-18C-BG is a female swivel hydraulic hose fitting designed to a DIN 24 degree seat light-duty specification. It provides a reliable, leak-resistant connection at the hose-to-port interface in metric hydraulic plumbing systems. Machined from steel, this fitting accepts a 10 mm hose size with a 23/32-inch hose diameter and uses an M26 x 1.50 mm thread for secure engagement. The swivel design allows the fitting body to rotate during installation, reducing hose twist and simplifying routing in tight hydraulic assemblies. Hydraulic technicians and fluid power mechanics working on mobile or industrial equipment install this type of fitting as part of standard hose assembly work.

This fitting is suited for metric hydraulic hose assemblies in mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic systems that specify DIN 24 degree seat light-duty connections. It is intended for applications where an M26 x 1.50 mm female swivel port connection is required on a 10 mm hose end. The steel construction supports use in typical hydraulic system pressure and temperature environments consistent with light-duty DIN fittings.

Key Features

• DIN 24 degree seat light-duty female swivel design for leak-resistant port connections
• M26 x 1.50 mm thread size for compatibility with metric hydraulic ports
• Accepts 10 mm hose size with 23/32-inch hose diameter
• Steel construction for durability in hydraulic service
• Swivel body reduces hose twist during installation and routing
• 1-17/64-inch hex size for standard wrench engagement

Compatibility

Designed as an OEM-style replacement metric hydraulic hose fitting for systems specifying a DIN 24 degree seat light-duty female swivel connection on a 10 mm hose with M26 x 1.50 mm thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with metric DIN fitting standards. Depressurize and fully isolate the hydraulic circuit before disconnecting or installing any hose fitting. Use the 1-17/64-inch hex flats to hold the fitting body while torquing the swivel nut to avoid twisting the hose. Inspect the DIN 24 degree seat and mating port surface for damage or contamination before assembly.
