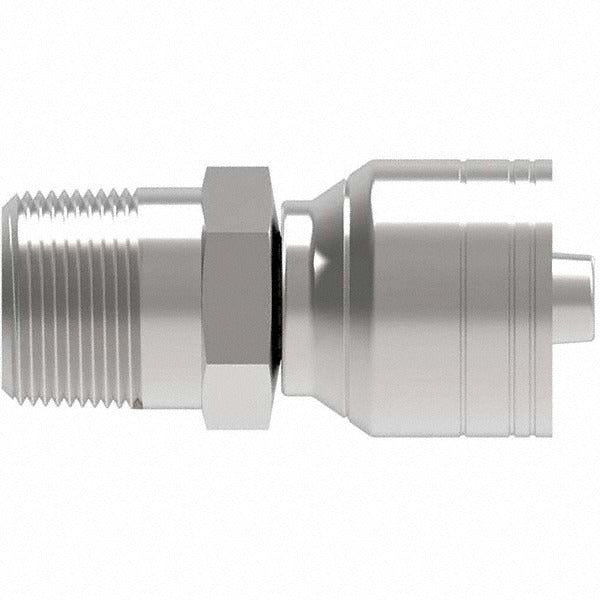

Eaton 10Z-106-BG Hydraulic Hose Mpt Rigid Fitting 3/8-18

Product Description

The EATON 10Z-106-BG is a male pipe rigid fitting designed for hydraulic hose assemblies. It provides a fixed, non-swivel connection between a hydraulic hose and a male pipe thread port. The fitting is machined from steel for durability under hydraulic system pressures. It accepts a 10 mm hose with a 3/8 inch outside diameter and uses a 3/8-18 MPT thread form for connection at the port end. Hydraulic technicians and fluid power mechanics install this type of fitting during hose assembly fabrication or field repair of hydraulic circuits on mobile and industrial equipment.

This fitting is suited for hydraulic hose assemblies where a rigid, non-rotating end connection is required. The MPT thread style makes it compatible with standard pipe thread ports common in hydraulic manifolds, cylinders, pumps, and valves. It is typically used in medium-duty hydraulic circuits on construction equipment, agricultural machinery, and industrial hydraulic systems where a secure, leak-resistant connection is needed at a fixed port location.

Key Features

• Male pipe rigid (non-swivel) fitting for secure, fixed-position hose termination
• 3/8-18 MPT thread for compatibility with standard pipe thread ports
• Designed for 10 mm hose size with 3/8 inch hose diameter
• Steel construction for strength and hydraulic system durability
• Single-piece rigid body minimizes potential leak points at the connection

Compatibility

Designed as an OEM-style replacement rigid hose fitting for hydraulic hose assemblies requiring a 10 mm hose size with a 3/8-18 MPT thread end connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disassembling any hose or fitting. Use appropriate pipe thread sealant on the MPT threads as required by system specifications and applicable fluid power standards. Inspect the hose end and fitting seat for damage before assembly to ensure a leak-free connection.
