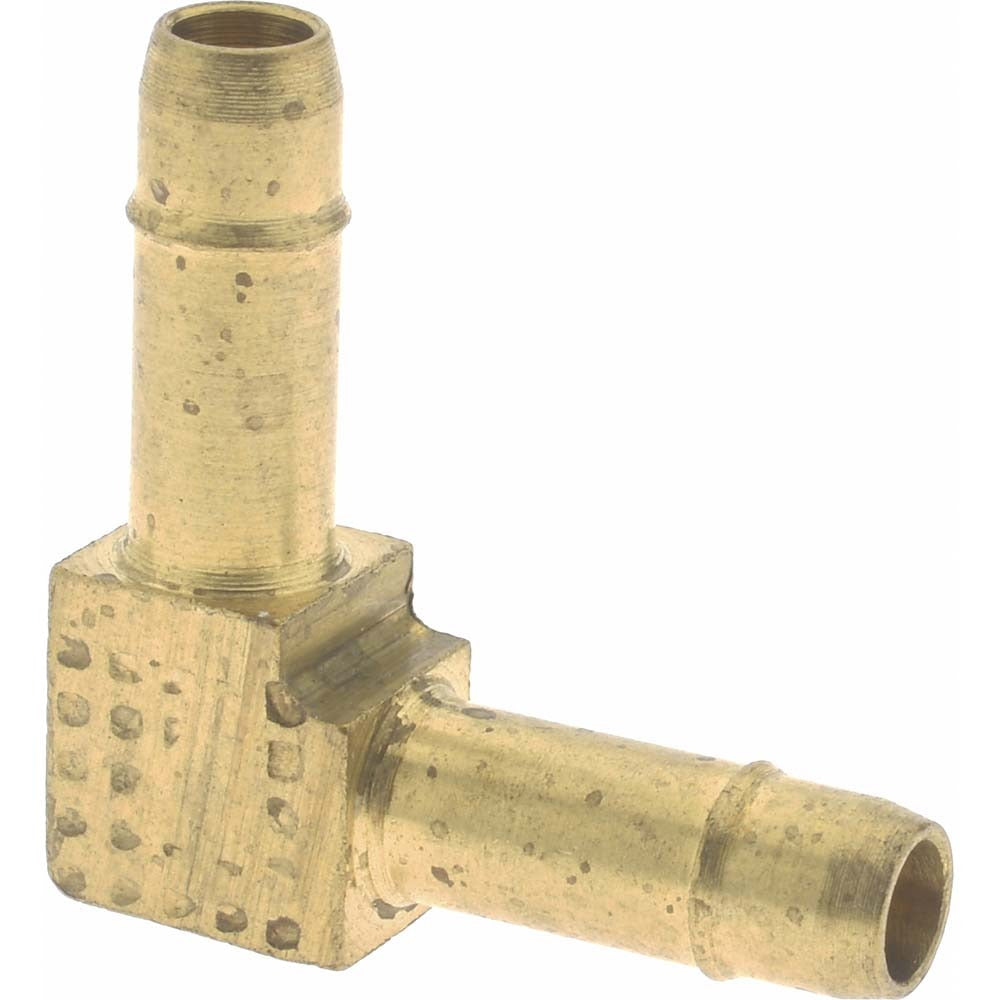

Eaton 1065X4 Barbed Tube Union Elbow 1/4 in Brass

Product Description

The EATON 1065X4 is a barbed tube union elbow fitting designed to connect two lengths of flexible tubing at a 90-degree angle. Constructed from brass, this fitting delivers reliable sealing performance in low-pressure fluid and pneumatic line applications. The barbed ends grip the inner wall of soft tubing to resist pull-off and reduce the risk of leaks without requiring additional ferrules or compression hardware. With a 1/4 inch tube outer diameter specification, the 1065X4 suits a range of small-bore tubing used in HVAC, refrigeration, and plumbing service work. Licensed plumbers, HVAC technicians, and mechanical contractors are the typical installers.

This fitting is suited for residential and light commercial applications where a directional change is needed in a soft-tubing run. Common installation scenarios include condensate drain lines, equipment drain connections, and low-pressure pneumatic or fluid transfer lines. The union-style design allows the elbow to be installed or removed mid-line without disturbing either tubing section, which is useful during service and maintenance work.

Key Features

• Brass construction provides corrosion resistance and durability in wet or humid service environments
• Barbed ends create a secure grip on soft tubing inner walls without additional compression hardware
• Union elbow configuration allows 90-degree directional change while permitting mid-line disassembly
• Compatible with 1/4 inch tube outer diameter flexible tubing
• Compact form factor suitable for tight installation spaces

Compatibility

Designed as an OEM-style replacement or service fitting for 1/4 inch OD soft tubing applications in HVAC, plumbing, and related mechanical systems.

Installation Notes

Installation is typically performed by a licensed plumber or HVAC technician. Shut off all fluid or air supply to the line before disassembly or fitting installation. Push tubing fully onto each barbed end until it seats past the last barb to ensure a leak-free connection. For pressure-rated or potable water applications, verify that the fitting meets the applicable IPC or local code requirements before installation.
