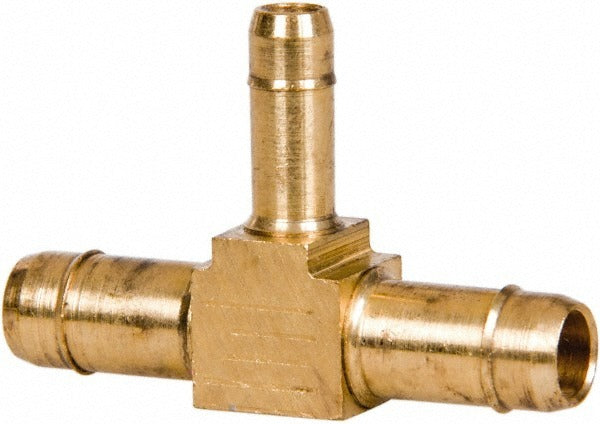

Eaton 1064X6 Barbed Tube Union Tee 3/8 Inch Brass

Product Description

The EATON 1064X6 is a barbed tube union tee fitting designed to join three sections of flexible tubing at a single connection point. Constructed from brass, this fitting accepts tubing with a 3/8-inch outer diameter on all three ports. The barbed ends grip tubing securely without the need for threaded fittings or soldering, making it a practical choice for fluid-handling assemblies in HVAC, refrigeration, and plumbing applications. It weighs approximately 0.019 pounds and is packaged individually. Plumbers, HVAC technicians, and mechanical contractors working with flexible tubing lines will find this fitting straightforward to install in both new construction and service work.

This union tee is suited for low-pressure tubing systems where a three-way branch connection is needed. Common applications include condensate drain lines, equipment cooling circuits, and light-duty fluid transfer assemblies. The union-style design allows the fitting to be installed or removed from the middle of a tubing run without cutting or dismantling the entire line, which is useful in tight equipment spaces or when servicing existing installations.

Key Features

• Barbed ends grip 3/8-inch OD flexible tubing on all three ports without threading or soldering
• Brass construction provides corrosion resistance and durability in fluid-handling service
• Union tee design allows mid-line installation and removal without full line disassembly
• Lightweight at approximately 0.019 pounds, suitable for compact assemblies
• Single-piece packaging for individual replacement or repair use

Compatibility

Designed as an OEM-style replacement barbed union tee for flexible tubing systems with a 3/8-inch outer diameter.

Installation Notes

This fitting is installed by plumbers or HVAC technicians working on flexible tubing systems. Before installation, shut off fluid flow and relieve any pressure in the line. Push tubing firmly over each barbed port and secure with appropriately sized clamps where required by the application or local code. Do not overtighten clamps on brass barbed fittings, as excessive force can crack the fitting body.
