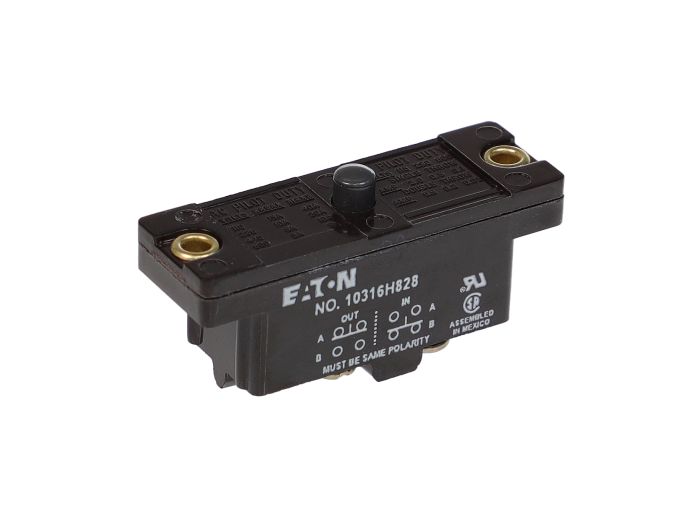

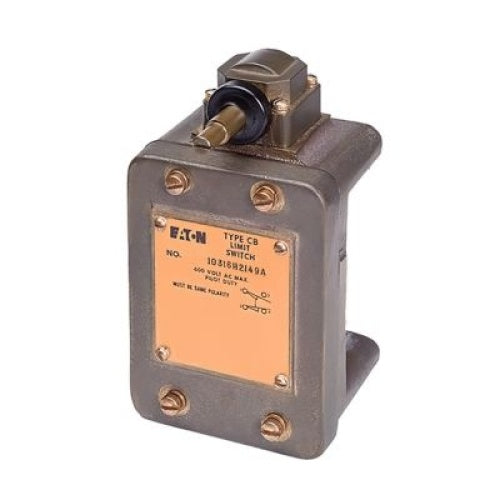

Eaton 10316H828 Precision Switch, Door Interlock; SPDT 1NO 1NC; 15A

Product Description

The EATON 10316H828 is a precision switch designed for door interlock applications. This SPDT switch features 1NO and 1NC contacts with a nominal current of 15A. It is suitable for special purpose industrial applications for MRO and user replacement requirements. The switch has screw terminals for connection.

• SPDT 1NO 1NC contact configuration
• Rated for 15A current
• Screw terminal connections

Product Highlights

The EATON 10316H828 is a precision switch with SPDT contacts, ideal for door interlock and special purpose applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10316H828

Technical Specifications

• Switch Type: Door Interlock Switch
• Poles/Contacts: SPDT 1NO 1NC
• Nominal Current: 15A
• Operator: None (switch only)
• Electrical Rating: 40A/120VAC, 10A/480VAC Make, 15A/120VAC, 6A/480VAC Break
• Connection: Screw Terminal
• Construction: Mineral Filled Phenolic
• Current Rating (Amps): 15A (AC), 500mA (DC)
• Manufacturer: Eaton
• Voltage Rating - AC: 120 V
• Voltage Rating - DC: 120 V
• Part Status: Active
• Actuator Type: Plunger
• Circuit: SPDT
• Mounting Type: Chassis Mount
• Switch Function: On-On
• Termination Style: Screw Terminal
• Product Series: 10316_SPECIAL_PURPOSE
• Family Series: Eaton Limit Switches, 10316_SPECIAL_PURPOSE Series
• Description: Eaton 10316 limit switch, Precision Switch, Contact Block, Thermoset Phenolic encl, 40A Make, 15A Break max AC, 0.5A Make, 0.5A Break max DC, 1NO-1NC, 40A Make, 15A Break at 120Vac, 0.5A Make and Break at 120Vdc, Screw Terminals
• Contacts: 1NO/1NC
• Contact Rating: Rating @ 125 VAC: 40 A, Rating @ 125 VDC: 2 A, Rating @ 250 VAC: 20 A, Rating @ 250 VDC: 0.5 A, Rating @ 480 VAC: 10 A
• Connection Type: Screw Terminals
• Indicator: No
• Approvals: CSA, UL
• Net Weight: 0.095 lbs
• Gross Weight: 0.105 lbs
• Vendor: Eaton (Electrical)
• Vendor ID: 10316H828
• Alternate Code: None
• Component: Limit Switch
• (Instrument-Sensor) IP Protection: IP69K
