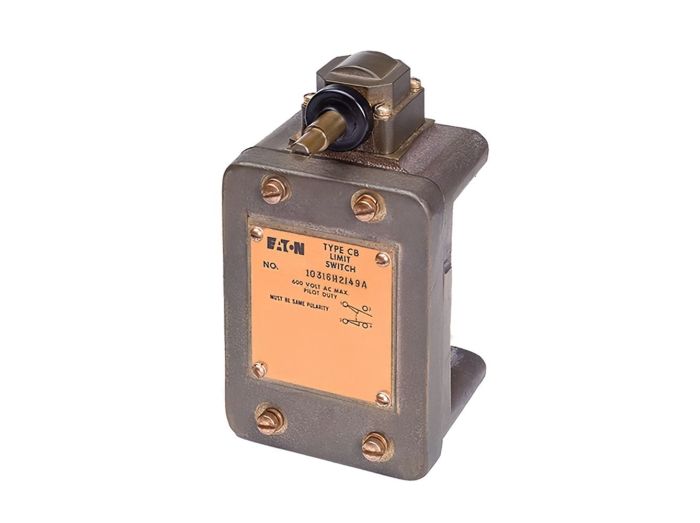

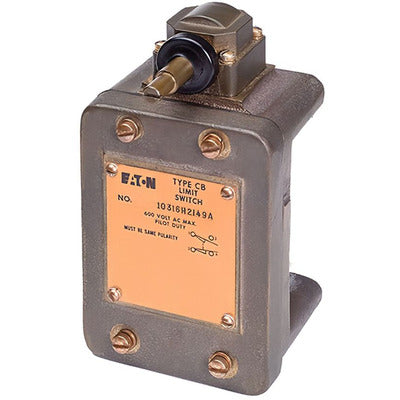

Eaton 10316H145 limit switch 10316 series

Product Description

The Eaton 10316H145 is a limit switch from the 10316 series, featuring a precision snap switch operator. It has a roller lever and is designed for top right actuation. The enclosure is made of zinc-plated steel. This component is suitable for various industrial applications requiring precise position detection.

• Precision snap switch operator
• Roller lever actuator
• Zinc plated steel enclosure

Product Highlights

The Eaton 10316H145 limit switch is designed for precise position detection in industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10316H145
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 10316H145
• Manufacturer: Eaton
• Product Series: 10316
• Family Series: Eaton Limit Switches, 10316 Series
• Actuator Type: Roller Lever
• Net Weight: 0.1 lbs
• Gross Weight: 0.14 lbs
• Alternate Mfr Part Number: 10316H145
• Brand: Eaton - Cutler Hammer
• Order code / Manufacturer SKU: 10316H145
• Manufacturer product status: Commercialized
• UPC code: 782113228808
• Product length/depth: 2.57"
• Product height: 2.81"
• Product width: 0.97"
• Product weight: 0.1 lb
• Compliances: Contact Manufacturer
• Type: 10316
• Enclosure material: Zinc plated steel
• Switch type: Roller lever / Top right / Actuator only
• Component: Operator
